Description
Short Description & Specifications
| Nominal Diameter | DN15 to DN500 (Standard), up to 3000 mm (15–3000 mm range) |
|---|---|
| Measuring Medium | Clean or dirty liquids, slurries, gases, steam, and multiphase flow |
| Accuracy & Repeatability | Liquid: ±0.5% of reading | Gas & Steam: ±1.0% of reading | Repeatability: 0.1% of reading |
| Measuring Range & Turndown | Velocity: Liquids ≤ 5 m/s, Gas/Steam ≤ 45 m/s | Turndown Ratio: Better than 10:1 |
| Working Temperature | -196°C to +850°C (High pressure variants: <100°C) |
| Working Pressure | 0.6 MPa, 1.0 MPa, 1.6 MPa, 4.0 MPa, 6.0 MPa, up to 20 MPa (DN25<20MPa, DN100<10MPa, DN150<6MPa, DN250<4MPa) |
| Material Options | Body/Flanges: 304L SS, 316L SS, 20# CS, CPVC, PTFE, Brass, A106B, A335-P11/P22, Dual-Phase Steel, Inconel 625, Hastelloy C276 | Cone: CPVC, PTFE, Stainless Steel |
| Process Connections | NPT, Flange (ANSI 150#, DIN, JIS), Wafer, or Butt Weld |
| Piping Requirements | 0–3 D Upstream, 0–1 D Downstream (Standard Beta Ratios: 0.45 to 0.85) |
Features & Key Advantages
Self-Conditioning Flow Profile
The centrally positioned V-shape cone reshapes velocity profiles, eliminating turbulence with minimal straight pipe runs (0–3D upstream, 0–1D downstream).
Extremely Low Pressure Drop
Produces significantly lower permanent pressure loss compared to standard orifice plates, nozzles, and venturi tubes.
Stain-Resistant & Clog-Free
Designed to handle harsh media, dirty liquids, slurries, and suspended contaminants without clogging or signal noise degradation.
High Accuracy & Repeatability
Delivers high accuracy up to ±0.5% for liquids and ±1.0% for gas/steam with a remarkable 0.1% repeatability.
Extreme Environment Handling
Capable of operating reliably under broad temperature conditions from cryogenic -196°C up to extreme heat at 850°C.
Versatile Multivariable Integration

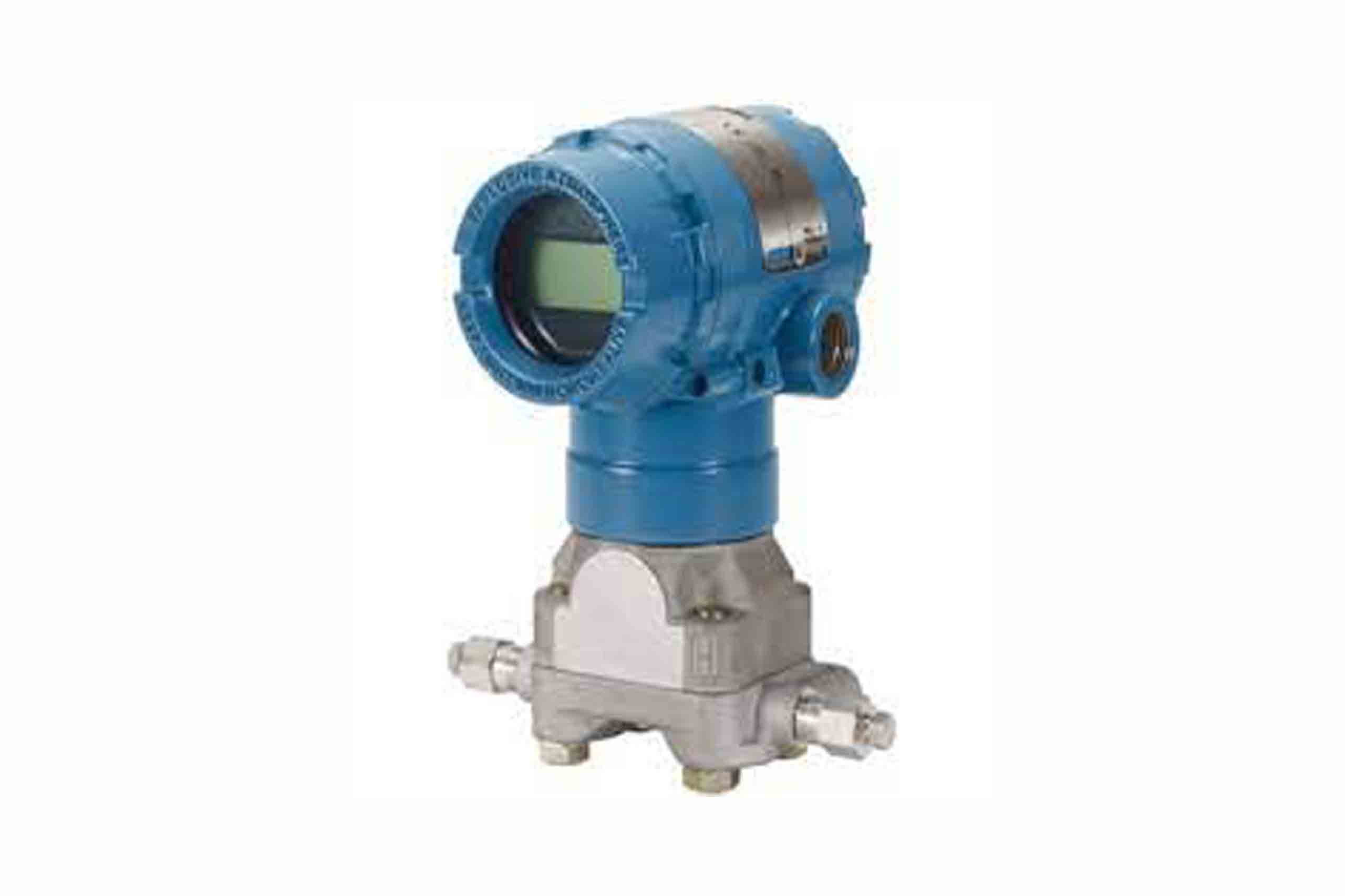

Seamlessly interfaces with multivariable transmitters or third-party DP transmitters across flexible mounting configurations.
