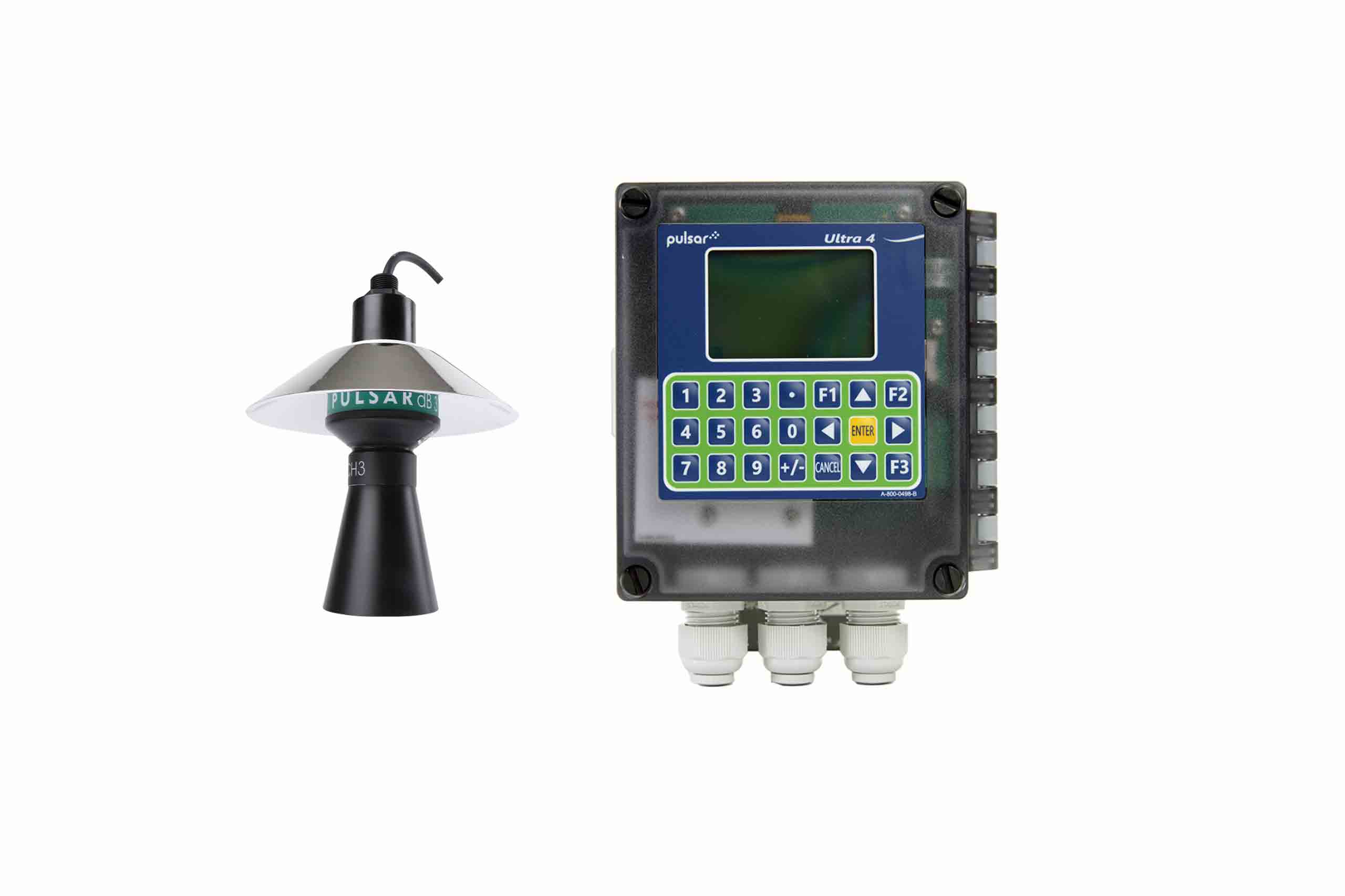

Description
Short Description & Specifications
| Application | Clean water, Wastewater |
|---|---|
| Measurement Type | Ultrasonic non-contacting, Contacting, Sensor |
| Measuring Elements | PMD Compatible, V-Notch Weirs, Rectangular/Trapezoidal Weirs, Flumes or Area Velocity Sensors |
| Measurement Range | 125 mm up to 50 m (0.41 ft to 164 ft) |
| Accuracy | 0.25% (can vary depending on sensor) |
| Resolution | 0.1% (can vary depending on sensor) |
| Operating Frequency | 20 kHz to 125 kHz (application dependent) |
| Beam Angle | <5° to <10° (application dependent) |
| Processing Technology | DATEM (Digital Adaptive Tracking of Echo Movement) for Ultrasonic & FMCW RADAR |
| Power Supply | 220 V AC (50 Hz) / 24 V DC |
| Power Consumption | 20 VA max (AC), 10 W max (DC) |
| Signal Output | Isolated 4-20mA / 0-20mA into 1 kΩ, Full Duplex RS232 |
| Relays Output | 3x Relays |
| Communications | Isolated Modbus RS485, Profibus, HART |
| Data Logging | Opt. Micro SD slot & totalizer logs |
| Enclosure Rating | IP 65, IP67, IP 68 |
| Environmental Temperature | -20°C to +45°C |
| Approvals | CE, UL, ATEX EEx m / EEx ia, FM/FMC approved |
Features & Key Advantages
All-in-One Functionality
Ability to measure pump control, flow measurement, and volume measurement in one compact unit.
Versatile Measurement Tech
Supports Radar or Ultrasonic measurement technology, alongside PMD level, Flow, and Area Velocity sensors.
Built-In Volume Calculations
Integrated volume calculations derived from standard tank shapes or custom calibration curves.
Advanced Visual Display
Echo profiles and level trend graphs are clearly shown directly on the built-in display screen.
Data Storage & Expandability
Equipped with a 32 GB Micro SD Card slot for extensive data logging and parameter transfers.
Flexible I/O & Relays
Features 4 onboard relays assignable by type, standard mA Output, and RS485 Modbus/Profibus options.
Quick Setup & Configuration
Intuitive quick setup features allow easy and rapid programming of all device parameters.
Mounting Versatility
Designed for convenient installation with options for both Wall or Fascia Mount setups.
