Description
Short Description & Specifications
| Available Sensors | pH, ORP/Redox, Conductivity (EC), TDS, Dissolved Oxygen, BOD, COD, TSS, Turbidity, Temperature, Hydrogen Peroxide, Chlorine, Ozone & Others |
|---|---|
| Configurations | Single sensor input & Multiple sensor options (Dual/Multi-parameter tracking) |
| Measuring Range | pH: 0.00 to 14.00 pH | ORP: ±2000 mV | EC: 0.05 µS/cm to 200 mS/cm | Chlorine: 0 to 200 ppm | DO: 0 to 20 mg/L |
| Measurement Accuracy | pH: 0.00 to 14.00 pH ORP/Redox: ±2000 mV Conductivity (EC): 0.05 µS/cm to 200 mS/cm TDS: 0 to 20,000 ppm (mg/L) Dissolved Oxygen (DO): 0 to 20.0 mg/L (ppm) / 0 to 200% BOD: 0 to 1,500 mg/L COD: 0 to 2,000 mg/L TSS: 0 to 50 g/L (0 to 50,000 mg/L) Turbidity: 0 to 4000 NTU (FNU) Temperature: -10.0 °C to +130.0 °C Hydrogen Peroxide (H₂O₂): 0 to 2000 ppm Chlorine (Free/Total): 0.00 to 20.00 ppm (mg/L) Ozone (O₃): 0.00 to 10.00 ppm Others (PAA/ClO₂): 0 to 2000 ppm (Peracetic Acid) / 0 to 20 ppm (Chlorine Dioxide) |
| Supply Voltage | 220 VAC (50/60 Hz), 24 VAC/VDC, or 12 VDC options |

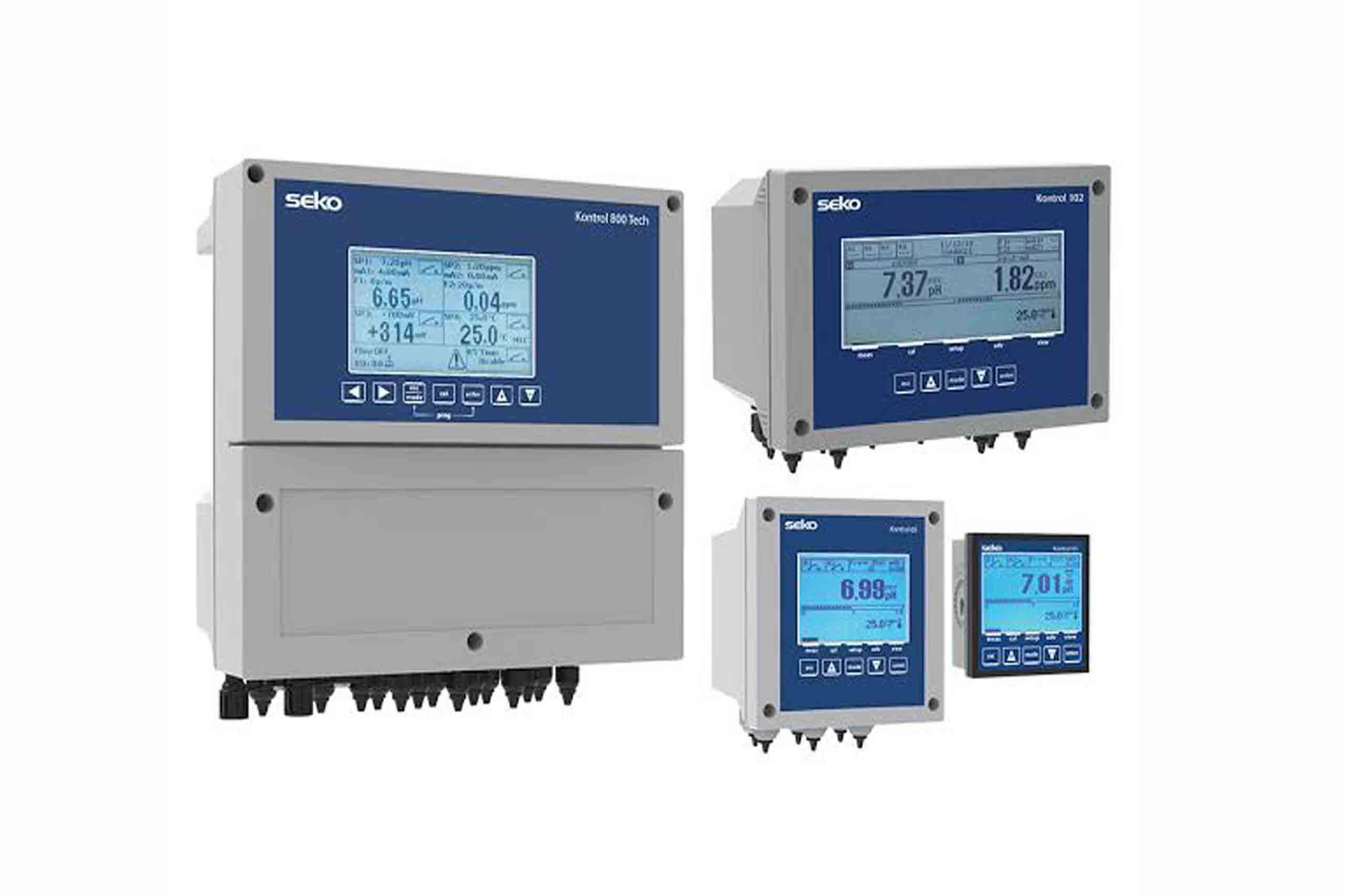

| Display Options | LCD Graphic Display |
| Signal Output & Relays | 4–20 mA, RS485 (Modbus RTU), Frequency/Pulse, and 2 to 6 Relay Outputs |
| Working Temperature & Pressure | Operating Temp: -10 °C to +130°C (sensor dependent) | Max Pressure: Up to 16 bar |
| Other Specifications | Automatic Temperature Compensation (Pt100/Pt1000), Data Logging, & Password Protection |
Features & Key Advantages
Multi-Parameter Tracking
Monitors pH, ORP, conductivity, chlorine, oxygen, turbidity, peracetic acid, ozone, bromine, and temperature.
Thermal Compensation
Integrated thermal sensors compensate for fluid variations to guarantee reliable measurement accuracy.
Robust Glass & Poly Body

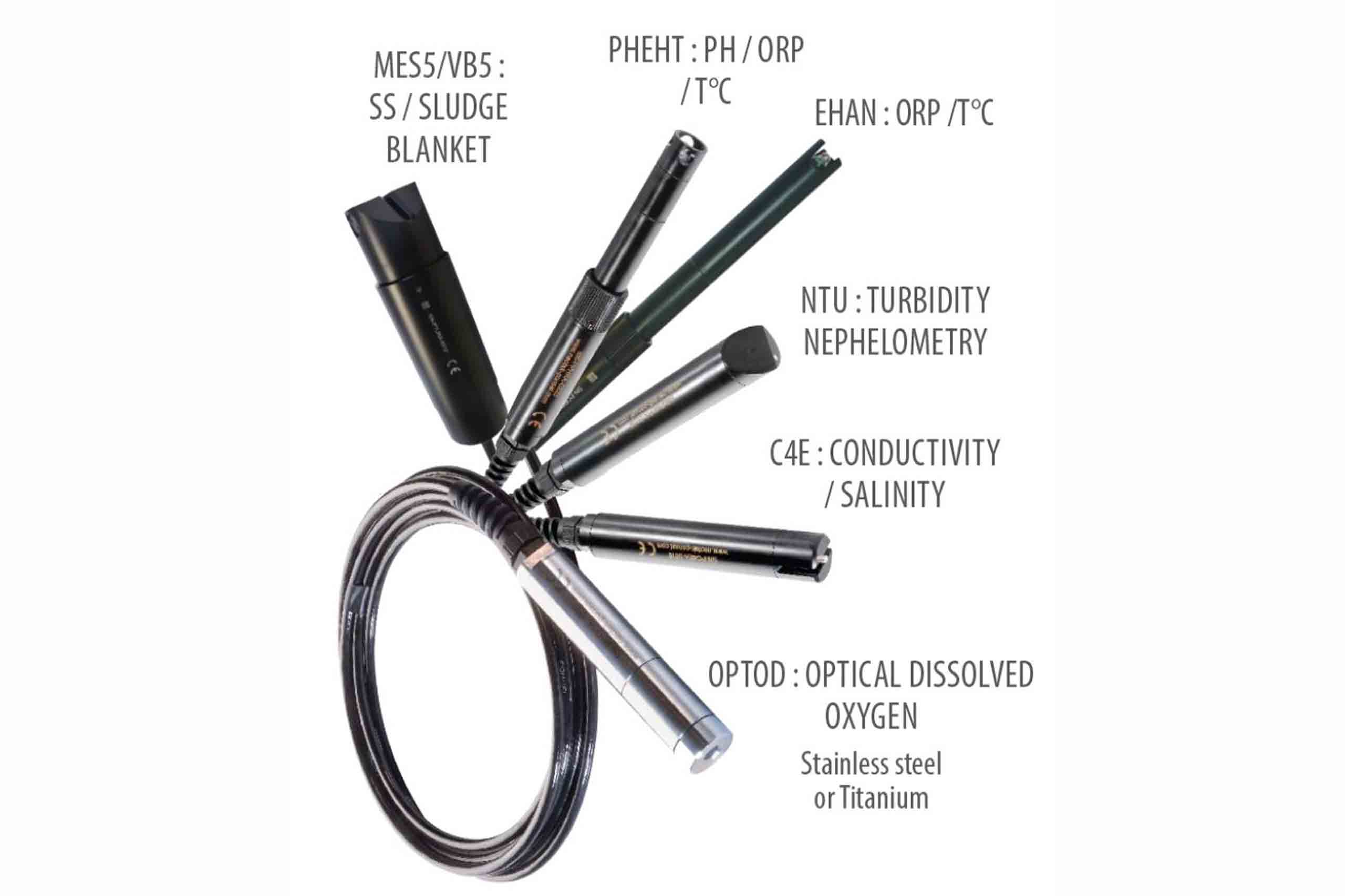

Probes engineered with polycarbonate, epoxy, glass, SS316L, and PTFE materials for harsh process conditions.
High Temp & Pressure Limit
Specialized probes sustain environments up to 130°C and process line pressures reaching up to 16 bar.
Submersible & Weatherproof

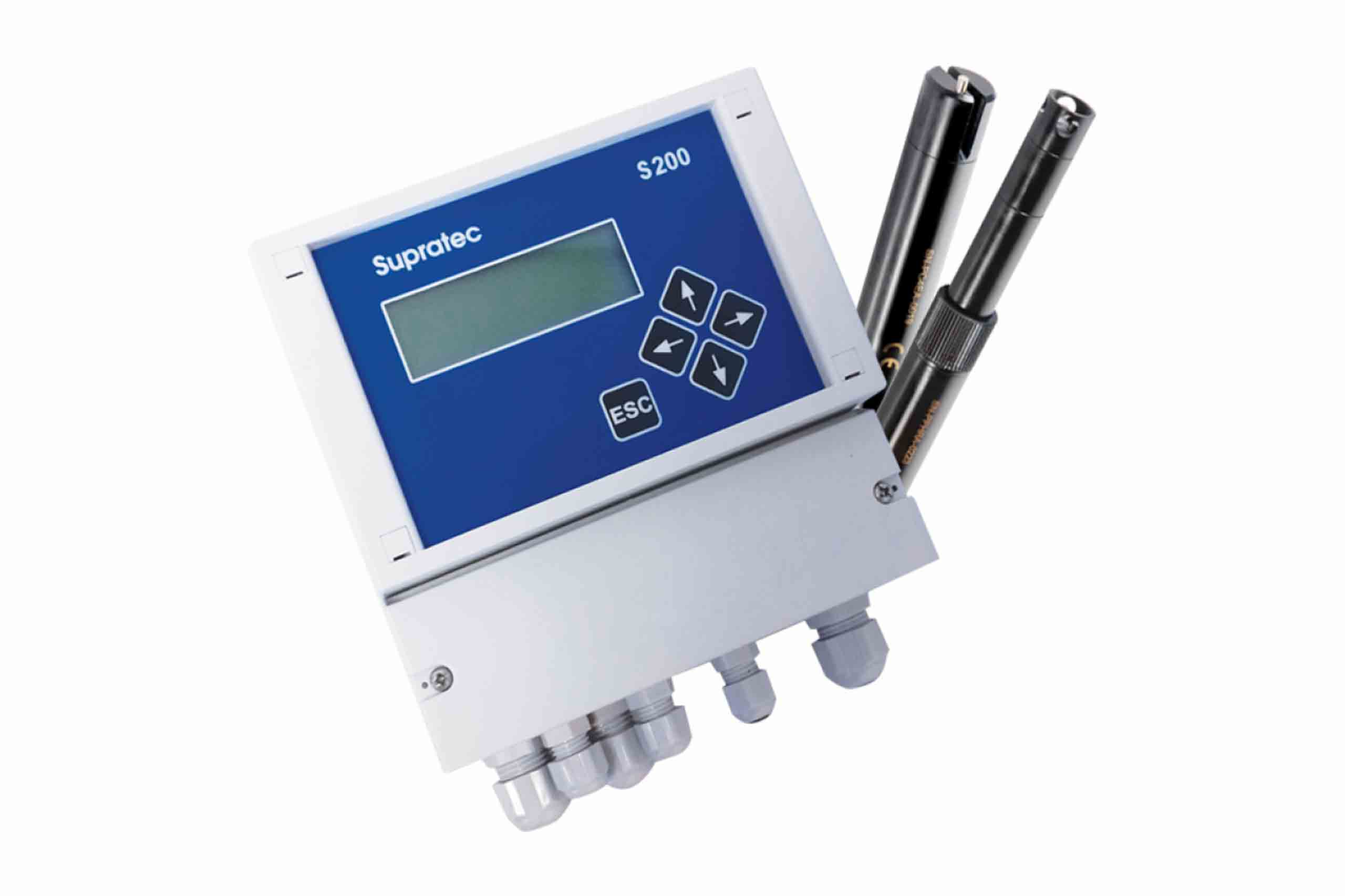

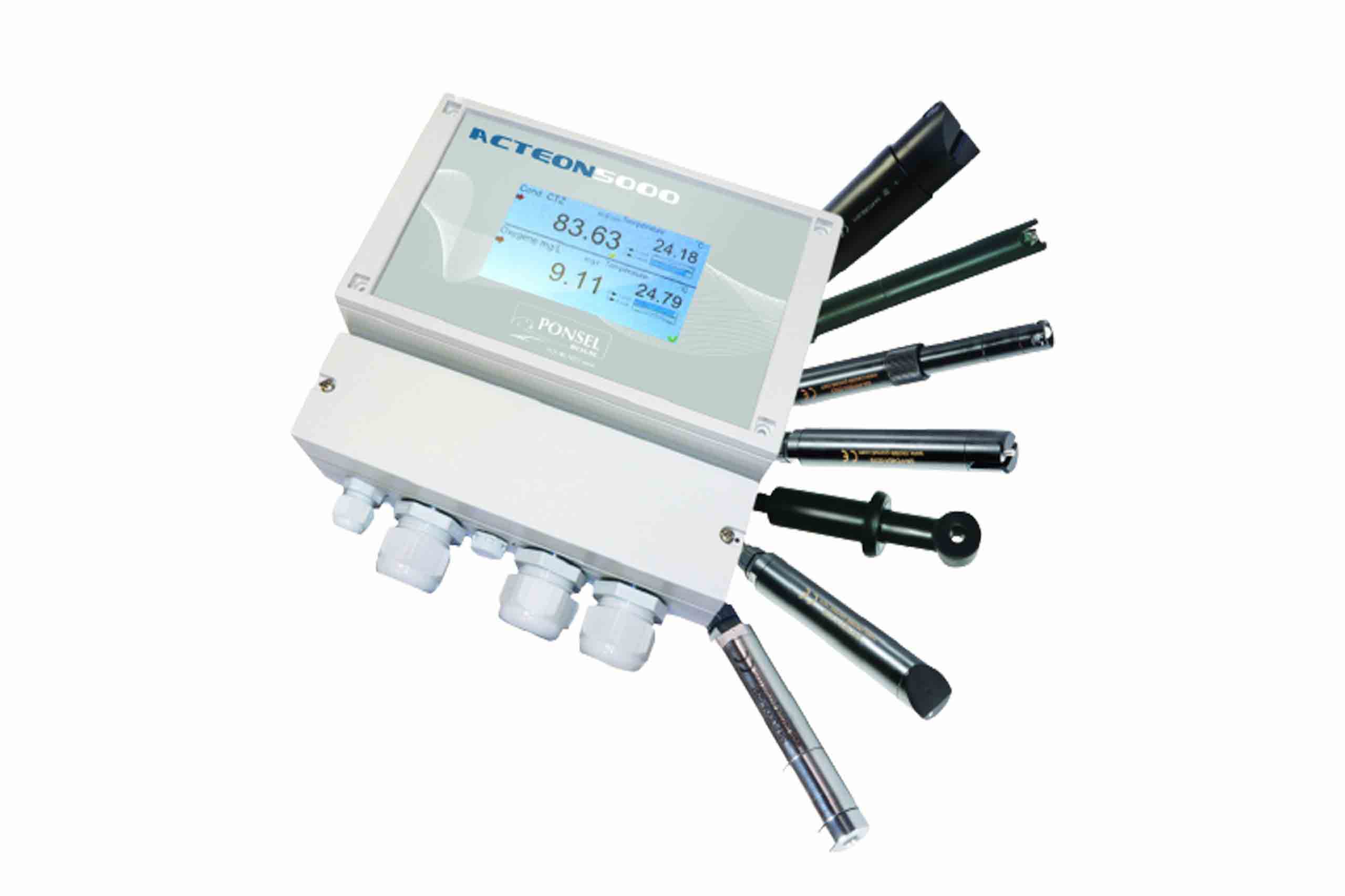

Sensory components built with IP68 immersion ratings alongside IP65 wall and panel controller units.
Versatile Modular Holders
Supports open multi-parameter cells, high-pressure in-line fittings, and immersion probes up to 2.5 m.
