Description
Short Description & Specifications
| Nominal Diameter | 1/4″ to 16″ (8 mm to 400 mm) ANSI or DIN Flange |
|---|---|
| Measuring Medium | Liquids, oil-in-water media, fluids with entrained solids, gasoline, liquefied gas, kerosene, crude oil, heavy oil |
| Accuracy & Repeatability | Standard ±0.5% of reading (optional ±0.2% or ±0.1%) | Repeatability: ±0.01% |
| Measuring Range & Viscosity | Flow Range: Up to 8800 GPM (2000 m³/hr) | Viscosity Range: 0 to 20,000 cP (mPa.s) |
| Working Temperature | Process: -22°F to 480°F (-30°C to 250°C) | Ambient: 104°F to 176°F (40°C to 80°C) |
| Working Pressure | Max 930 psig (64 bar) | Ratings: 1.6 MPa, 2.5 MPa, 4.0 MPa, 6.4 MPa |
| Material Options | Body & Rotors: Cast Steel, 304 Stainless Steel, 316 Stainless Steel, Carbon Steel |
| Outputs & Signal Output | Pulse Output (24VDC), Current Output (4-20mA, 2-wire), Digital Output (RS485/RS232 Modbus RTU) |
| Enclosure & Approvals | NEMA 4 (IP65) | UL, CSA, ATEX, NEPSI Class I, Div 1 & 2 Approvals |
Features & Key Advantages

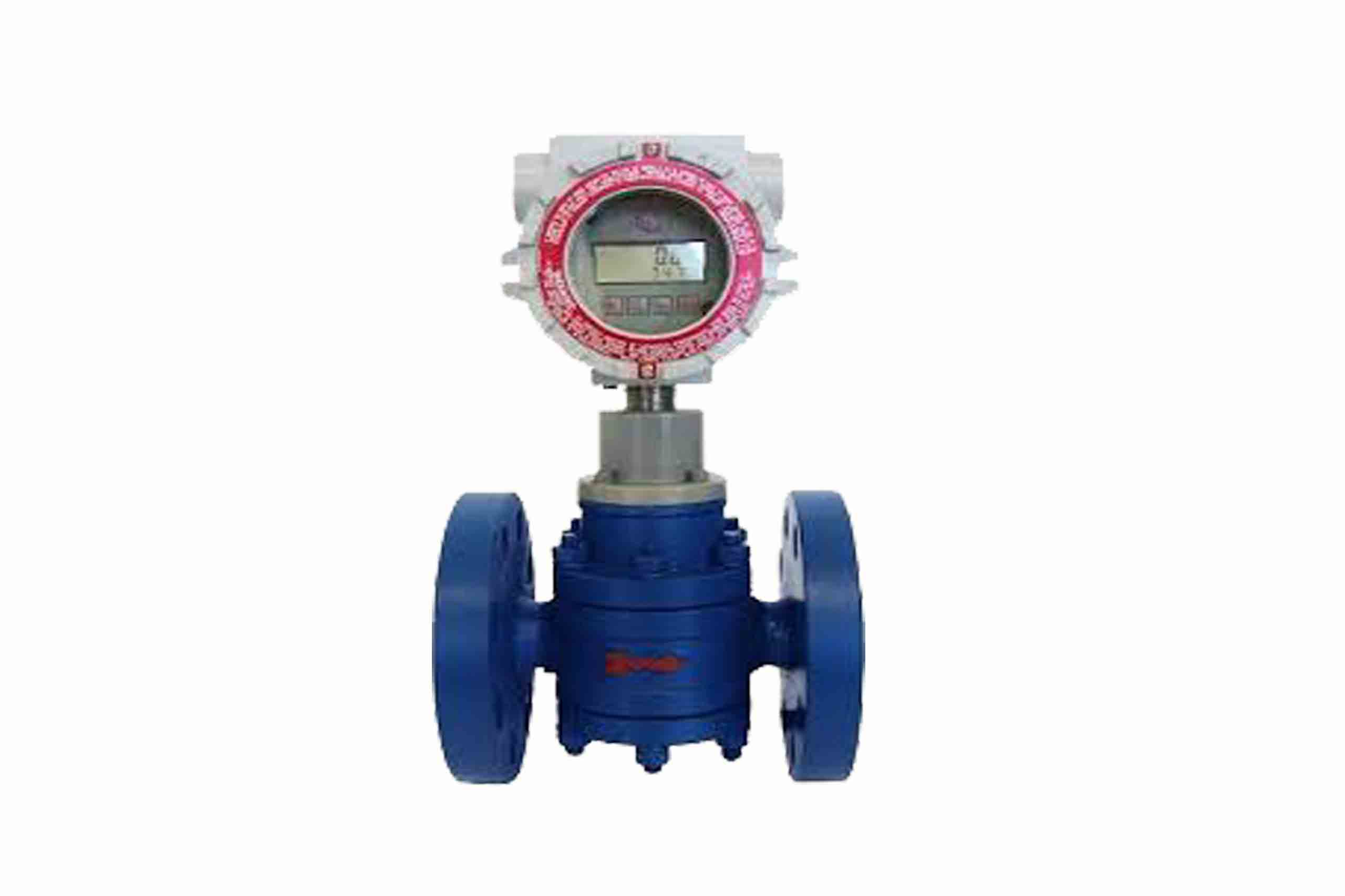

Helical Bi-Rotor Design
Two precisely machined helical rotors mesh without metal-to-metal contact to create low pressure loss and virtually eliminate downstream pulsations.
High Precision Measurement
Offers standard 0.5% accuracy with options down to 0.1% or 0.2%, combined with an exceptional 0.01% repeatability.
Rugged Double Case Construction
Prevents loss of calibration caused by environmental fluctuations, temperature changes, or line pressure variations.
Low Maintenance & Self-Lubricating
Self-lubricating system with a reduced number of parts, providing exceptionally low noise, minimal vibration, and extended service life.
Enhanced Particle & Viscosity Tolerance
Handles viscous fluids up to 20,000 cP, entrained solids, and challenging applications like oil-in-water mixtures with ease.
Advanced Batching & Mounting
Supports vehicle/skid mount configurations (SMS-716) with 2-stage batching, overrun compensation, and NIST traceable calibration.
