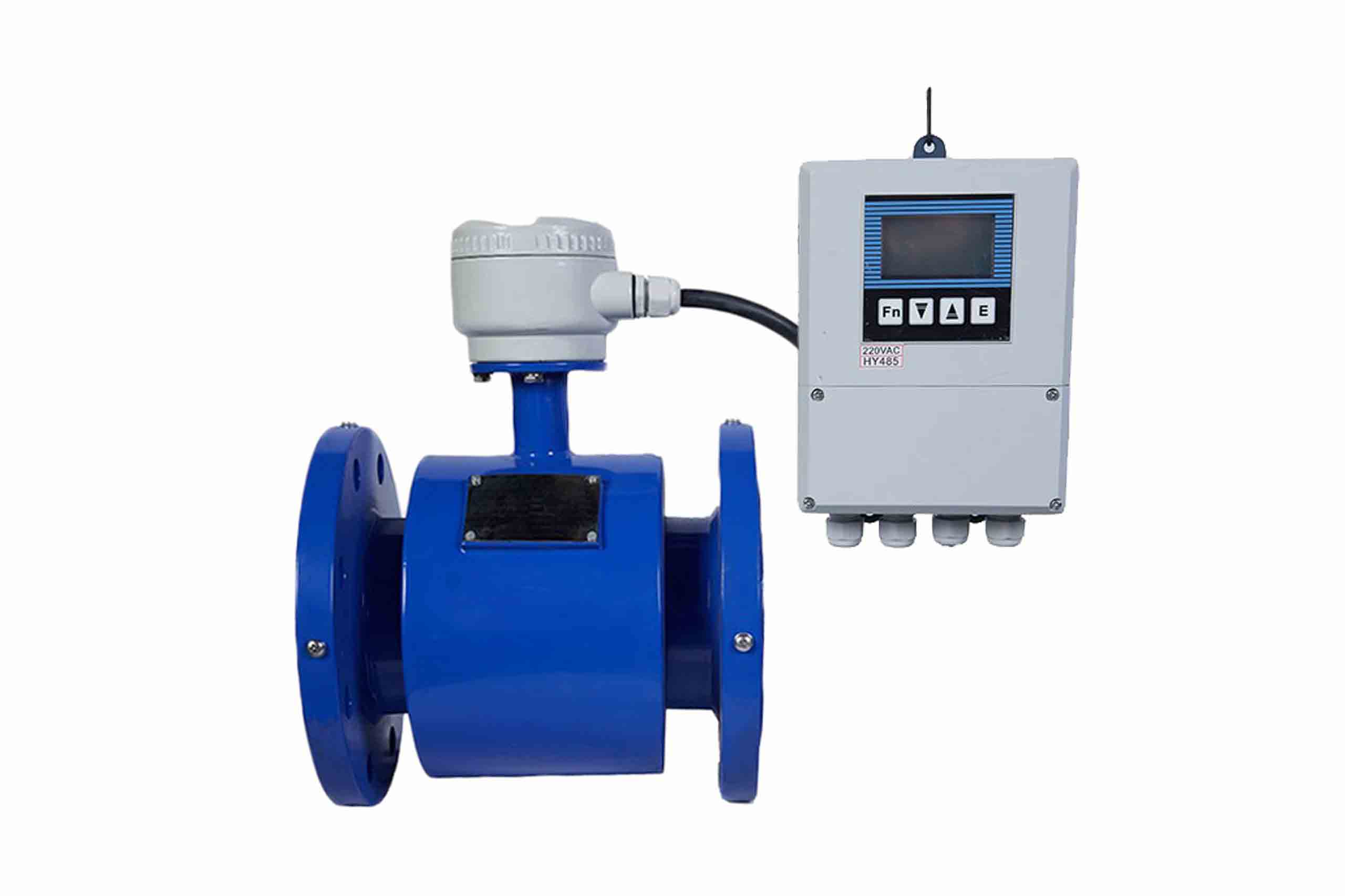

Description
Short Description & Specifications
| Nominal Diameter | DN6 to DN2500 |
|---|---|
| Accuracy Grade | Standard Grade 0.5 (Special Grade 0.2) |
| Repeatability | 0.15% to 0.25% |
| Medium Velocity Range | 0.3 to 12 m/s (Extended: 0.1 to 15 m/s) |
| Fluid Conductivity | ≥ 5 μS/cm (25 μS/cm standard) |
| Lining Materials | Chloroprene Rubber (CR), Fluoroplastics (F4, F46, PFA), Polyurethane, Alumina Ceramic |
| Electrode Materials | Stainless Steel, Tantalum, Titanium, Hastelloy B/C, Platinum-Iridium Alloy, Tungsten Carbide Coating |
| Protection Rating | IP65, IP67, IP68 (Submersible) |
| Power Supply | 220V AC, 50Hz or 24V DC, or Built-in Lithium Battery |
| Output Signal & Comms | Current (4-20mA), Pulse, Modbus RS485, GPRS, HART Protocol |
| Explosion-Proof Grade | Std Non-Ex or Opt. Explosion Proof |
Features & Key Advantages
Highly Accurate
Measures liquid flow very accurately (standard 0.5% or high-precision 0.2%), ensuring you always get reliable readings.
No Pipe Blockages
The empty pipe design means nothing blocks the liquid. This keeps the liquid flowing smoothly with zero pressure loss.
Fits Any Pipe Size
Available in a huge range of sizes, from very small (DN6) to massive industrial pipes (DN2800) to fit your exact setup.
Handles Different Conductive Liquids
Choose from different rubber or plastic linings (like PTFE) to easily handle harsh chemicals, wastewater, or dirty mining slurries.
Clear Digital Screen
Comes with a bright, easy-to-read screen that instantly shows you the current flow rate and the total amount of liquid used.
Waterproof & Safe
Features a sealed, strong housing. It protects against dust and water (up to IP68 for underwater use) and has explosion-proof options.
Easy System Connection
Sends data quickly to your control room using standard signals like 4-20mA, RS485, or HART, making automation simple.
Virtually No Maintenance
With no moving parts to wear out, clog, or break, this meter requires very little maintenance, saving you time and money.
