Description
Short Description & Specifications
| Pipe Size | DN10 to DN4000mm |
|---|---|
| Measuring Medium | Various gases |
| Accuracy | ±1 ~ 2.5% |
| Velocity Range | 0.1 to 100 Nm/s |
| Working Temperature | Sensor: -40°C ~ +100°C | Transmitter: -20°C ~ +45°C |
| Working Pressure | ≤1.6 MPa (Special pressure options available) |
| Body & Sensor Material | Stainless Steel (Other materials on request) |
| Power Supply | Std. 24V DC, Opt. 220V AC, or Lithium Battery |
| Output & Communication | Pulse, 4-20mA, Modbus RS485, HART Protocol |
| Explosion-Proof Grade | Std. Non-Explosion-proof, Opt. Explosion-proof, Flameproof |
Features & Key Advantages
Direct Mass Flow Measurement
Measures mass flow or volume flow of gas directly without requiring temperature and pressure compensation.
Wide Velocity & Pipe Range
Wide measurement range (0.1 to 100 Nm/s) suitable for pipe sizes ranging from DN10 up to DN4000mm.
Durable & Reliable Design
Features good vibration resistance, long service life, no moving parts, and zero pressure sensor influence.
Flexible Installation Options

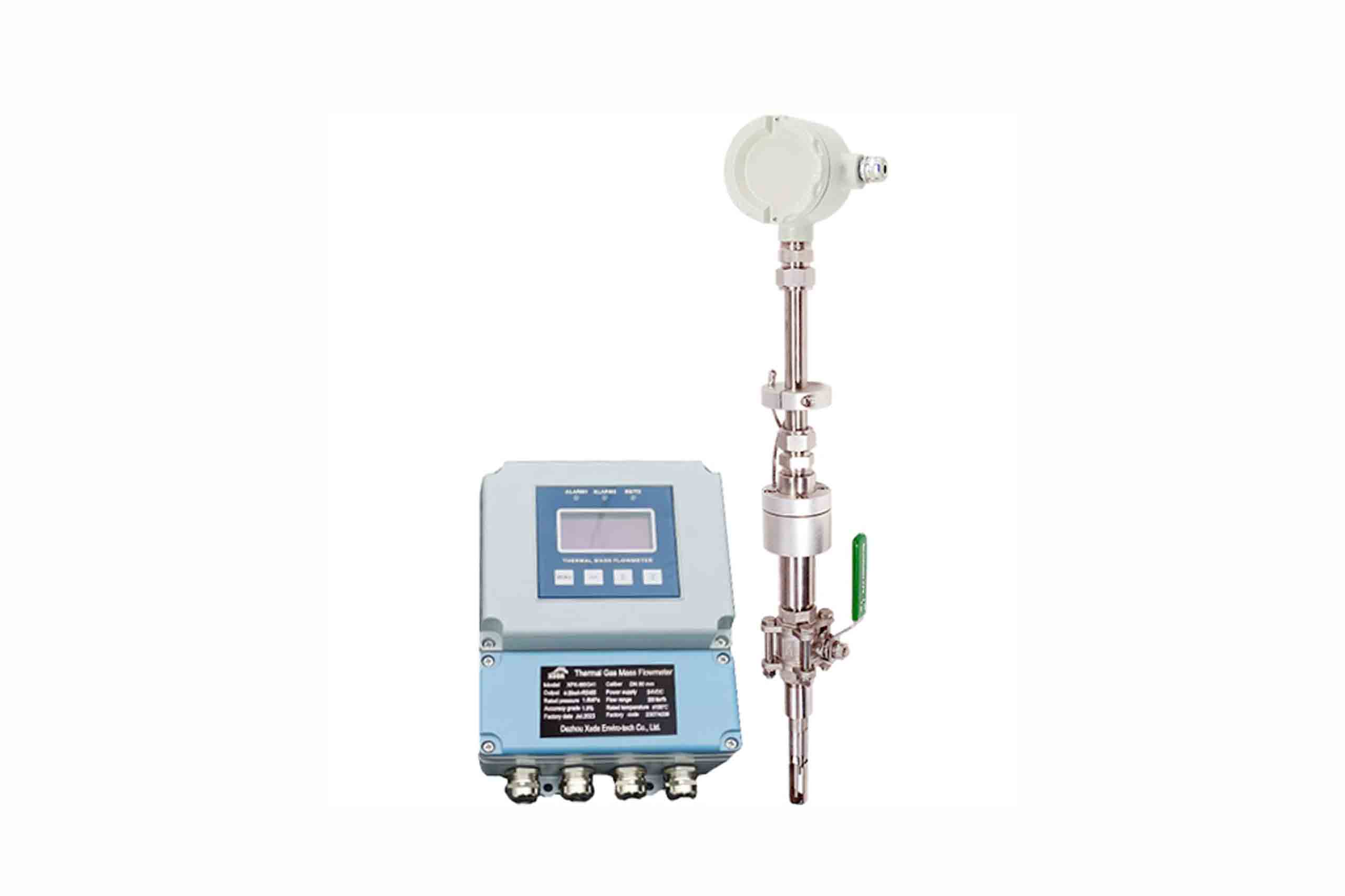

Supports standard insertion and flanged mounting, and compact or remote constructions.
LCD Display
Clear digital display showing mass flow, standard volume flow, totalizer, date/time, working time, and velocity.
Easy System Integration
Outputs pulse, 4-20mA, RS485, and HART signals can use for PLC/SCADA/Eqv control system.
