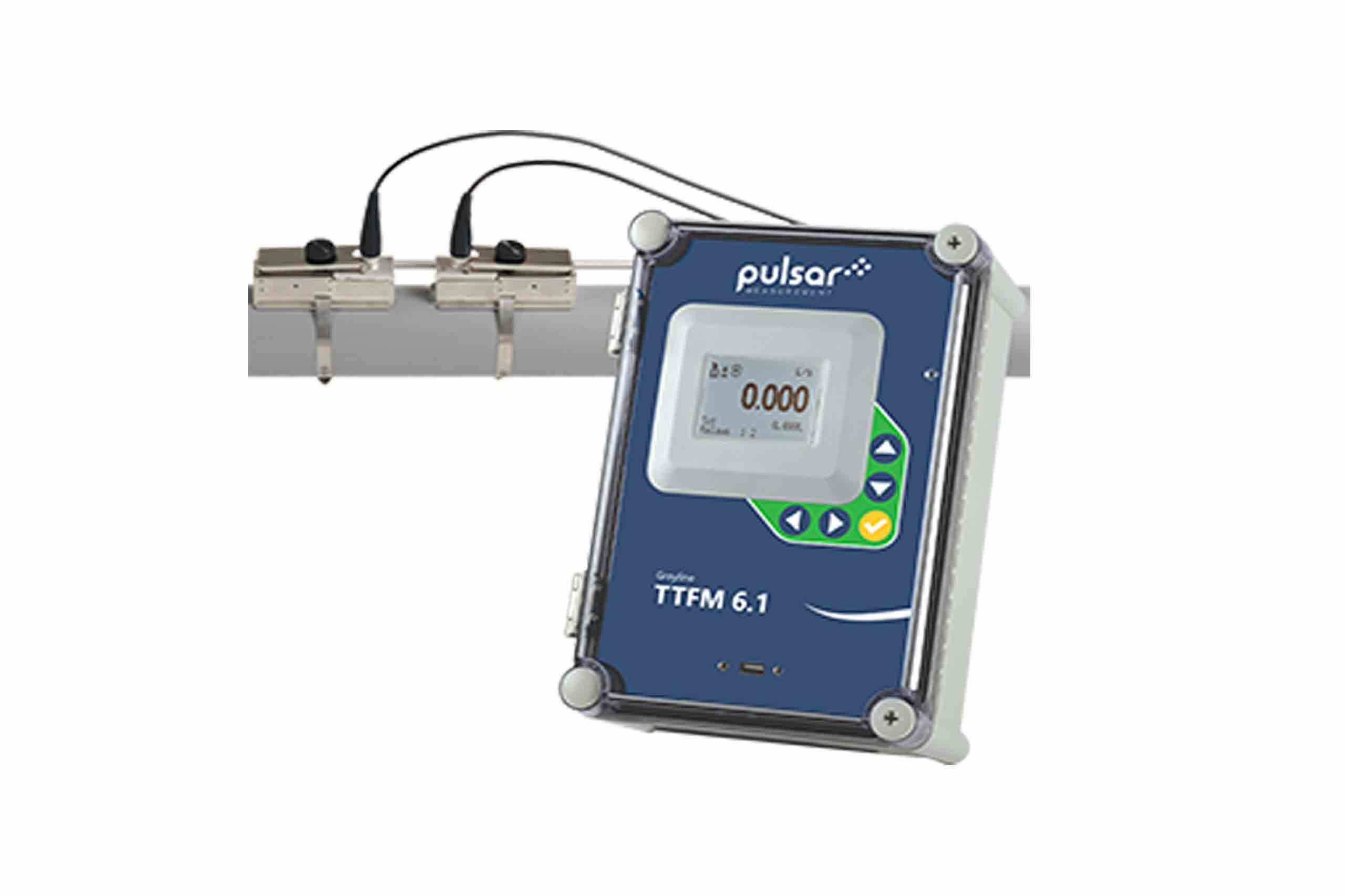

Description
Short Description & Specifications
| Operating Parameters | For clean liquids in full pipes with less than 2% solids or gas bubbles |
|---|---|
| Flow Velocity Range | ±0.02 m/s to 12.2 m/s (±0.07 ft/s to 40 ft/s) |
| Accuracy | ±1% of reading from 0.46 m/s to 12.2 m/s (1.5 ft/s to 40 ft/s); ±0.0046 m/s (±0.015 ft/s) for velocities below 0.46 m/s (1.5 ft/s) |
| Repeatability | ±0.25% |
| Pipe Diameter (Recommended) | 15 mm to 1,200 mm (1/2 in to 48 in) |
| Pipe Materials | Any metal or plastic sonic conducting material including carbon steel, stainless steel, ductile iron, concrete-lined ductile iron, cast iron, PVC, HDPE, PVDF, fiberglass, copper, brass, aluminum, and pipes with bonded liners including epoxy, rubber, and Teflon |
| Operating Frequency | 0.64~ 2.56 MHz |
| Power Supply | 220V AC 50 Hz | Optional: 24 V DC |
| Power Consumption | 10W (aaprox) |
| Analog Output | Isolated 4-20mA, 0-5 V, 1 kΩ load maximum |
| Control Relays | 2 Relays, form ‘C’ dry contacts rated 5 A SPDT; programmable flow alarm and/or flow proportional pulse | Optional: 4 additional (6 total), rated 5 A SPDT |
| Data Logging | Built-in 128 MB data logger with USB output and Windows software (capacity for approx. 26 million data points) |
| Enclosure Rating | NEMA4X (IP 66) polycarbonate with clear, shatterproof cover |
| Operating Temperature (Electronics) | -20 °C to 60 °C (-5 °F to 140 °F) |
| Operating Temperature (Sensors) | -40 °C to 150 °C (-40 °F to 300 °F) |
| Transducer Mounting Kit | Stainless steel track with pipe clamps, built-in ruler, and coupling tape |
| Transducer Cables | 7.6 m (25 ft); extendable up to 152.4 m (500 ft) |
| Approvals | CE, FM Standard, Optional: ATEX/IECEx Zone 0, Ex ia IIB T4 Ga |
Features & Key Advantages
Versatile Transducer Options
Three easy-to-select transducer options covering 15 mm to 1,200 mm nominal pipe diameters.
Universal Pipe Compatibility
Transducers work seamlessly on all common metal and plastic pipe materials.
Non-Invasive Installation
Transducers simply strap to the outside of the pipe, causing zero wear and tear and requiring no system shutdown.
Expert Hardware Design
Standard mounting hardware allows even novice installers to perform expert-level setup easily.
Flexible Communications
Offers analog, pulse, and serial communication options tailored to meet specific application needs.
High-Capacity Logging
Standard 26 million point data logger with free Logging Software makes data management fast and easy.
Hazardous Area Certified
All transducers are fully approved for safe, reliable operation in hazardous locations.
Dedicated Staff Support
Easy-to-contact, knowledgeable staff available to assist before, during, and after installation.
