Description
Short Description & Specifications

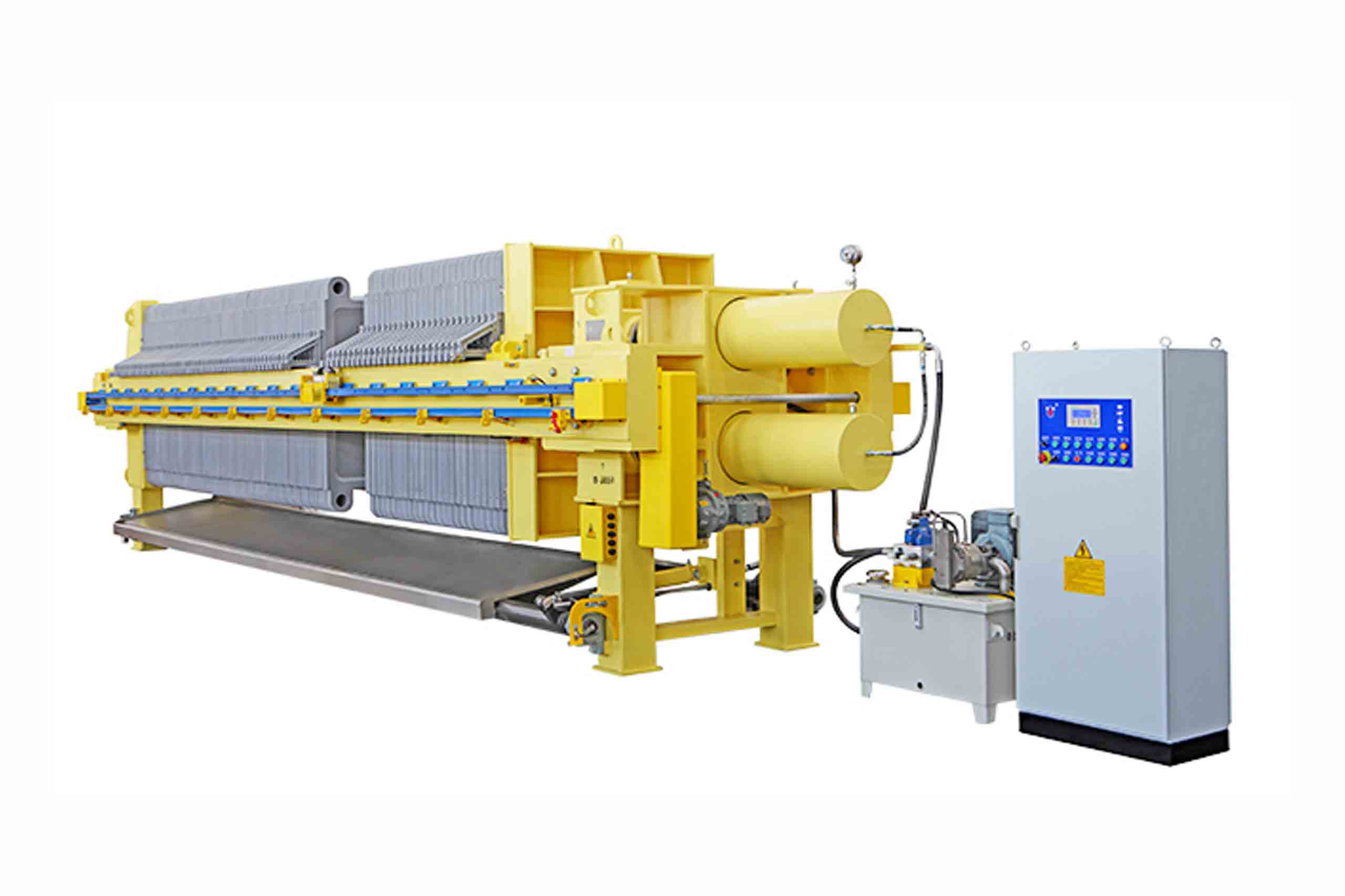

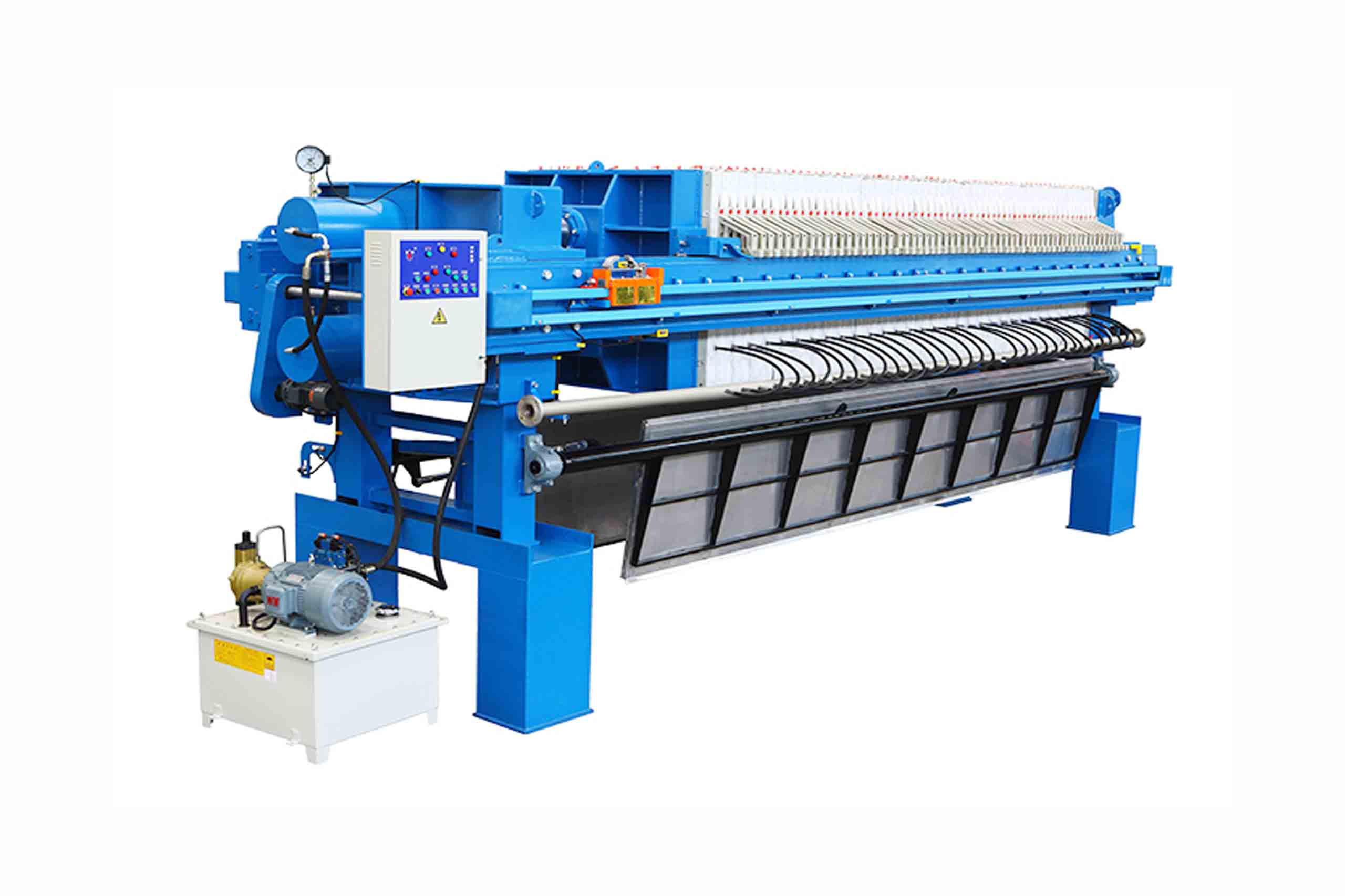

| Type | General & Automatic Hydraulic Filter Press |
|---|---|
| Open & Close Drive | Central hydraulic station driving a dedicated hydraulic cylinder |
| Operation Mode | Automatic PLC-controlled sequence with touchscreen operator panel |
| Plate Opening Method | Manual & Automatic mechanical shifter |
| Filter Plate Types | Chamber recessed plates / High-pressure polypropylene membrane plates |
| Hydraulic Cylinder | High-pressure double-acting cylinder with automatic pressure maintenance |
| Max Filtration Pressure | Standard 0.8 – 2.0 MPa (Squeeze pressures up to 2.5 MPa) |
| Filtration Area Range | 11 m² to 960 m² (Model dependent) |
| Control Cabinet | Integrated PLC system, HMI color touchscreen, emergency stop, and remote diagnostics |
| Filtrate Discharge Options | Closed discharge manifold or open discharge trough |
| Drip Tray | Automated hydraulic Bombay drip tray system with safety interlocks |
| Cake Washing & Air Blowing | Automated cake washing cycle and core blow feature for ultimate dryness |

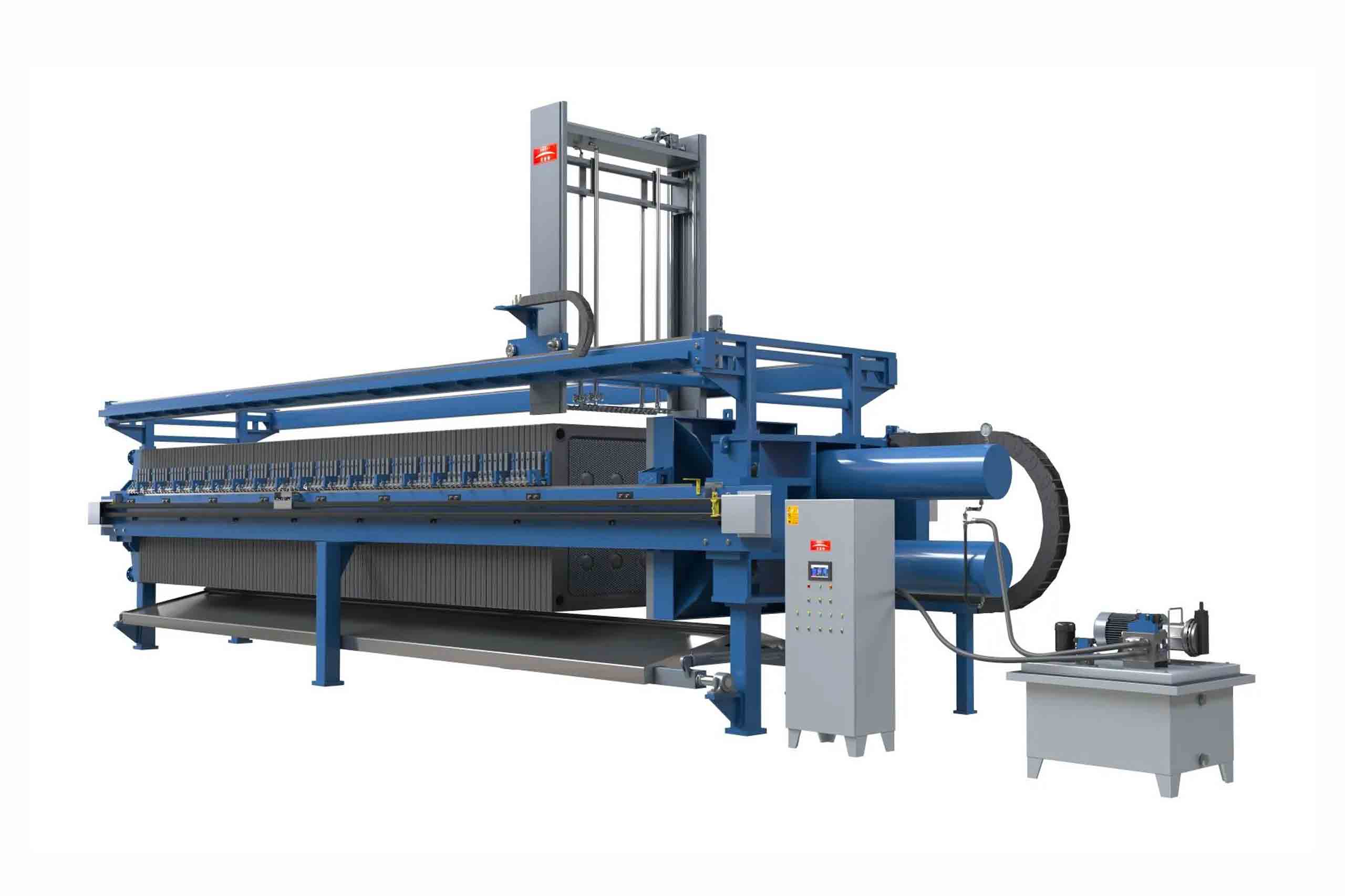

| Automatic Cloth Washing | Optional high-pressure (40-50 bar) automatic cloth washing track system |
| Automatic Shaking | Optional pneumatic or mechanical plate shaking device for complete cake discharge |
Features & Key Advantages
Option for Fully Automated Cycle
Programmable logic controller manages cake pressing, washing, core blowing, and plate shifting without manual intervention.
Advanced Membrane Squeezing
Secondary mechanical expression reduces residual cake moisture by an additional 10–20% compared to standard chamber presses.
Fast Mechanical Shifting
High-speed automatic plate shifter minimizes idle time, reducing overall cycle duration and maximizing throughput.
Integrated Drip Protection
Automatic Bombay drip trays collect residual liquid during filtration and open cleanly prior to cake discharge.
High-Pressure Cloth Washing
Optional traveling spray-bar washes filter cloths in-place to restore permeability and prevent blinding.
Enhanced Operator Safety
Features safety light curtains, emergency pull cords, and integrated hydraulic pressure monitoring interlocks.
Corrosion-Resistant Plates
Utilizes reinforced polypropylene filter plates designed for chemical resistance, high thermal stability, and long service life.
Versatile Application Use
Widely applicable in industrial wastewater treatment, chemical processing, mining tailing, food & beverage, and pharmaceutical liquid-solid separation.
