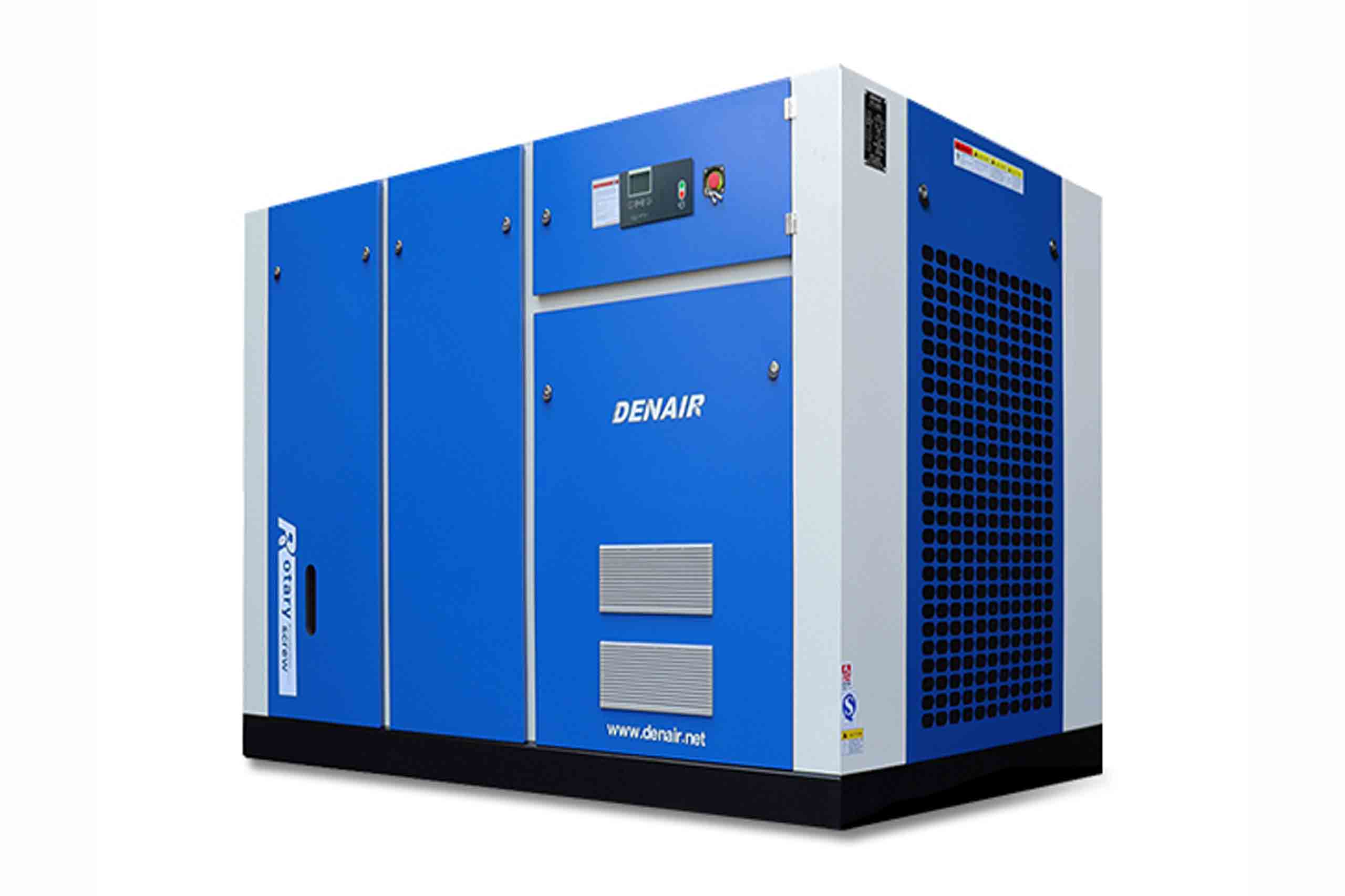

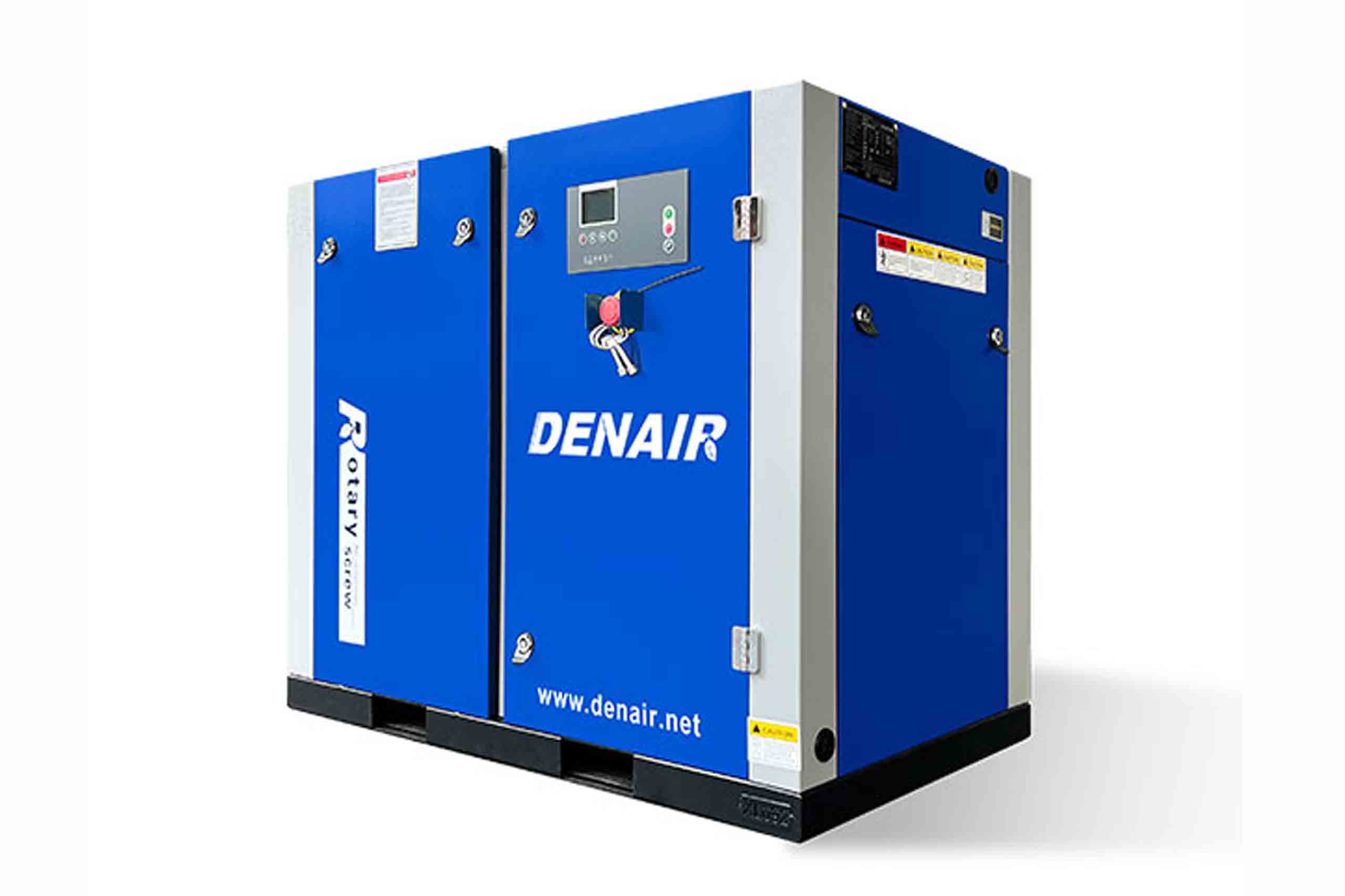

Description
Short Description & Specifications
| Motor Power Range | 7.5 kW to 355 kW (10 HP to 475 HP) |
|---|---|
| Air Capacity (FAD) | 1.1 m³/min to 62.0 m³/min (38.8 CFM to 2189.5 CFM) |
| Working Pressure Range | 7.0 bar to 13.0 bar (101.5 psi to 188.5 psi) |
| Drive Type | 1:1 Direct Drive / Variable Speed Drive (VSD Options) |
| Motor Efficiency Class | IE3 /IE4 |
| Cooling Method | Air-Cooled standard (Water-Cooled optional for heavy models) |
| Residual Oil Content | Less than 3 ppm (Oil-Injected) / Class 0 ISO 8573-1 (Oil-Free Option) |
| Control System | Intelligent PLC Touchscreen Controller (RS485 / Modbus ready) |
| Noise Level | 62 dB(A) to 76 dB(A) ±3 |
| Ambient Operating Temperature | -5 °C to +46 °C (+23 °F to +114.8 °F) |
Features & Key Advantages
High Efficiency Air End
Large-diameter rotor profile ensures maximum airflow output with minimized energy consumption.
VSD Energy Savings
Variable Speed Drive adjusts motor output to real-time air demand, reducing energy costs by up to 35%.
Direct-Drive Transmission
Eliminates gear or belt power transmission losses, providing high reliability and lower maintenance overhead.
Smart Microcontroller
Monitors operating pressure, temperature, service intervals, and real-time operational status automatically.
Low Noise Enclosure
Sound-dampening acoustic canopy design maintains quiet operation suitable for point-of-use installations.
Heavy-Duty Filtration System
Multi-stage oil separator and high-efficiency air filters deliver clean, high-quality compressed air.
Optimal Thermal Management
Large surface area oil and air coolers keep operating temperatures low even under extreme ambient conditions.
Easy Maintenance Access
Wide access hinged side doors allow fast, straightforward replacement of oil filters, air filters, and separators.
