Description
Technical Specifications
| Pump Tube Lengths | 700 mm, 1000 mm, 1200 mm, 1500 mm, and 1800 mm |
|---|---|
| Pump Materials & Construction | Tubes: PPHT, PVDF, or Stainless Steel (SUS316) Drive Shaft: SUS316 or Hastelloy® Internal Parts: PTFE Guide Sleeve, Rulon® Shaft Bushing, PVDF Impeller |
| Viscosity Capacity | Standard Series: up to 1,200 cps High Viscosity (HV) Progressive Cavity Series: up to 100,000 cps |
| Flow Rate & Operating Pressure | Flow Rates: Up to 120 L/min (Standard Series) or Up to 90 L/min (High Viscosity Series) Max Operating Pressure: Up to 10 bar |
| Electric Drive Options | Variable Speed Motor Options: 110V or 220V (1-Phase, 50/60Hz, 485W) |
| Pneumatic Air Drive Options | Oil-Free Air Motors: 420W (0.56HP) to 560W (0.75HP) |
| Max Liquid Temperature | PPHT: up to 80°C (175°F) PVDF: up to 100°C (212°F) Stainless Steel (SUS316): up to 120°C (248°F) |

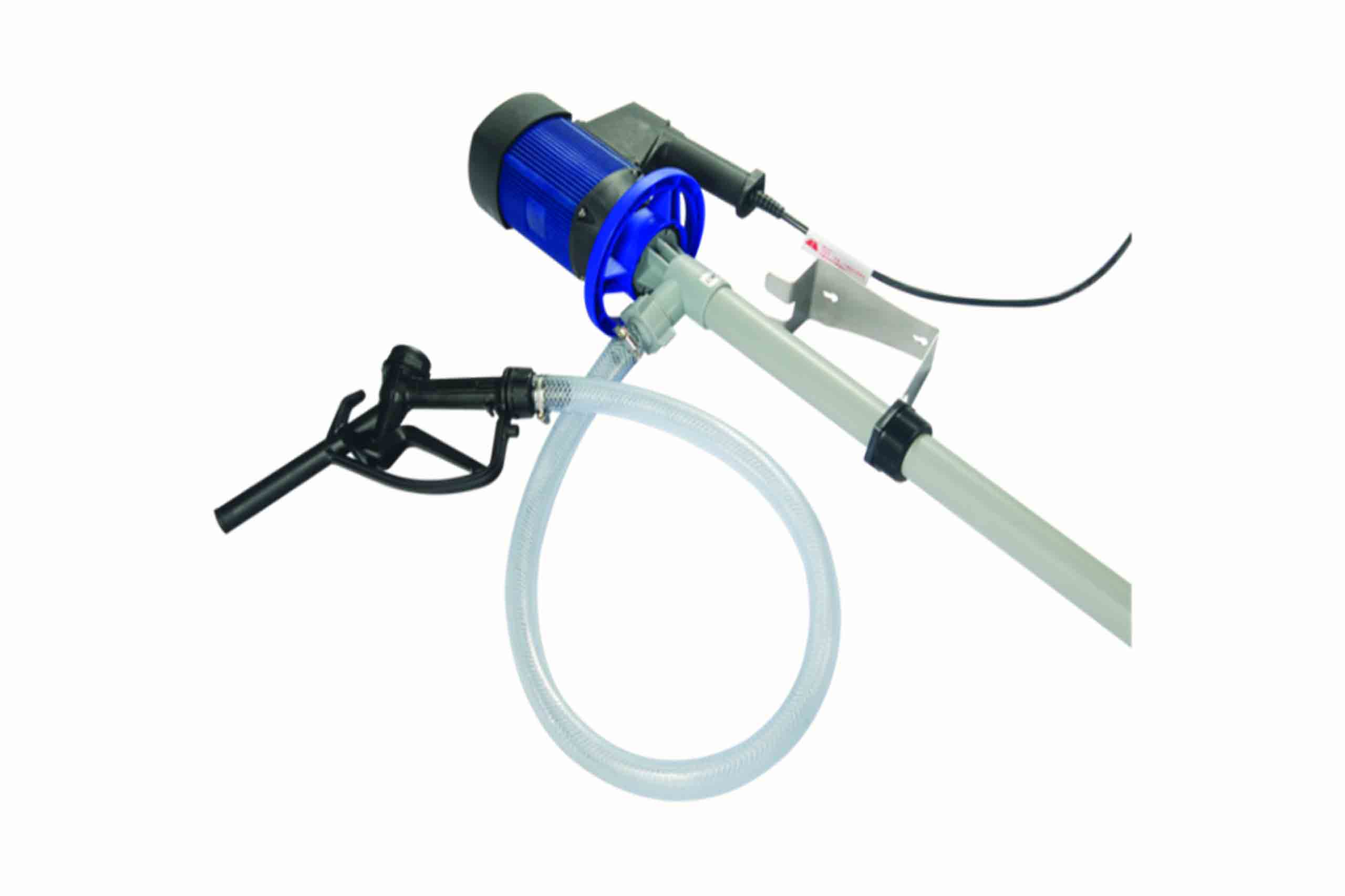

| Optional Accessories | Flow Control Nozzles, Barrel/Air-Leaking Adaptors, Digital Flow Meters, Grounding Wires, Strainers, Wall Brackets, Transfer Hoses (PFA / Braided PVC) |
Features & Key Advantages
Motor Options

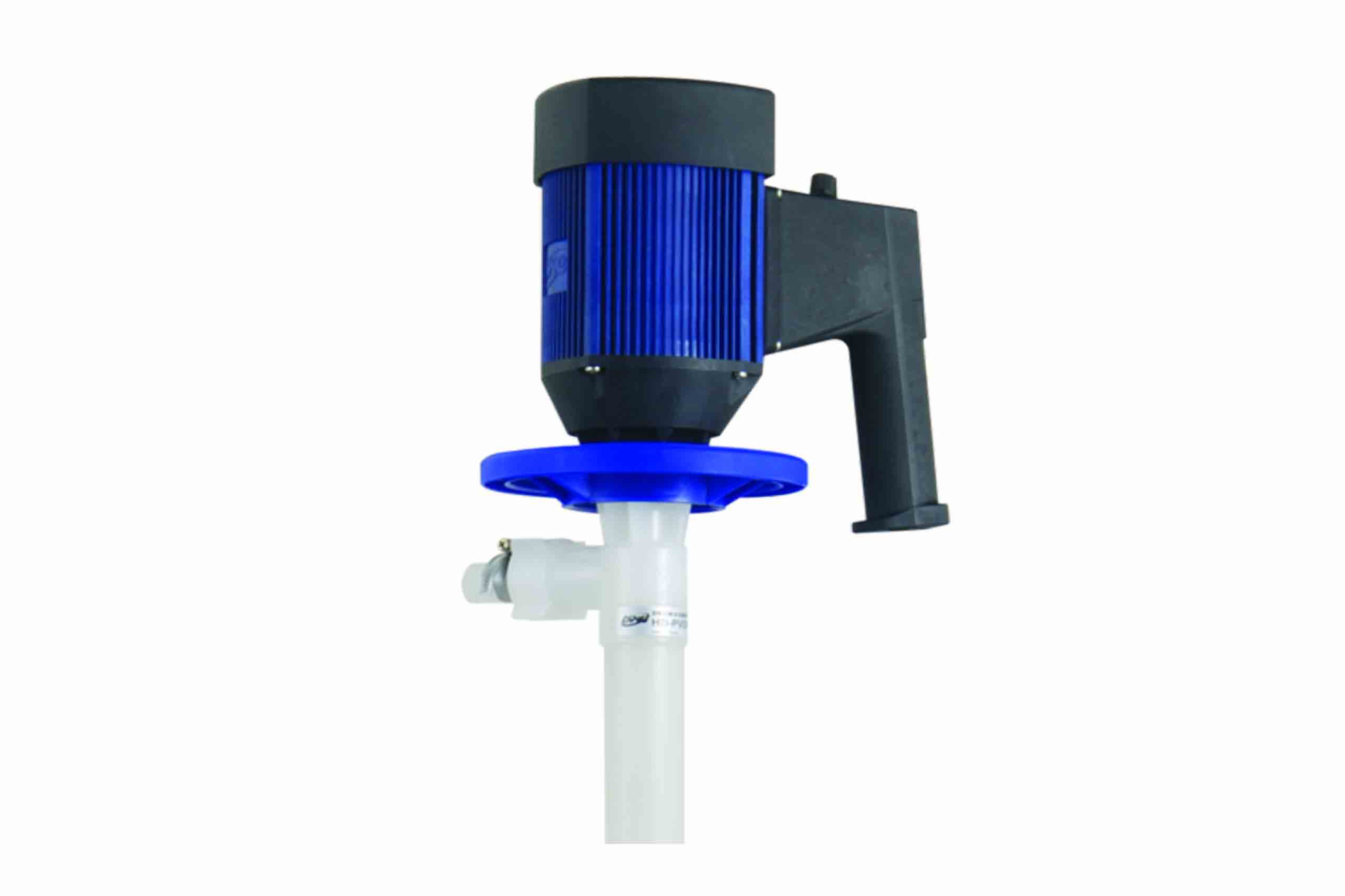

Available with Oil-Free Air Motors or efficient 485W Variable Electric Motors.
Custom Chemical Resistance

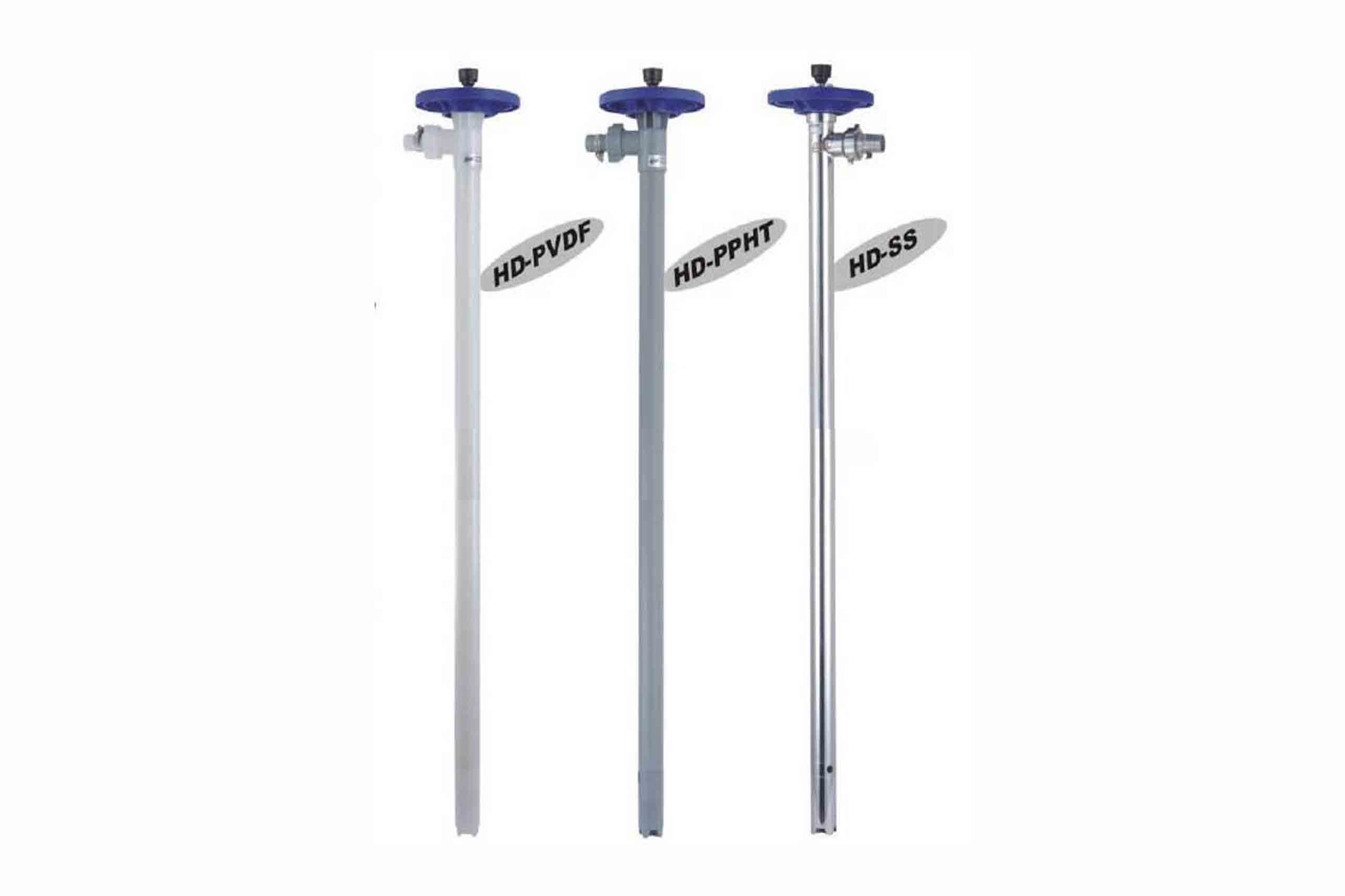

Pump tubes are available in PPHT (polypropylene), PVDF, or SUS316 Stainless Steel to handle aggressive media.
Tool-Free Modular Design
The motor detaches easily from the tube, allowing internal parts to be replaced quickly by hand without special tools.
