Description
Industrial Centrifugal Pumps Specification
Technical Specifications
| Flow Rates & Capacity | 1.5 m³/hr to 600 m³/hr (25 L/min to 10,000 L/min) across single & multistage models |
|---|---|
| Operating Pressure & Head | Max Working Pressure: Up to 25 bar (2.5 MPa) Total Head: Up to 320 m (Multistage) / Up to 100 m (End Suction) Suction Lift: Up to 8 m (Self-Priming Series) |
| Power & Voltage Specs | 0.37 kW to 110 kW (0.5 HP to 150 HP); 220V Single-Phase / 380V-415V Three-Phase (50/60 Hz) |
| Port & Connection Sizes | 1″ to 8″ (DN25 to DN200) Flanged (PN16/PN25) and Threaded BSP/NPT Connections |
| Liquid Temperature Range | -15°C to +120°C (Standard) / Up to +300°C with High-Temp Viton Mechanical Seals |
| Materials of Construction | Casing: GG25 Cast Iron, Ductile Iron, AISI 304 / AISI 316 Stainless Steel Impeller: Bronze, Cast Iron, SS304/SS316 Shaft & Seals: AISI 316 / 420 Stainless Steel, SiC/SiC Mechanical Seals |
| Motor Rating & Duty | IP55 Protection, Class F Insulation, IE2/ IE3 / IE4 Premium Efficiency, Continuous Duty S1 |
Core Industrial Pump Categories

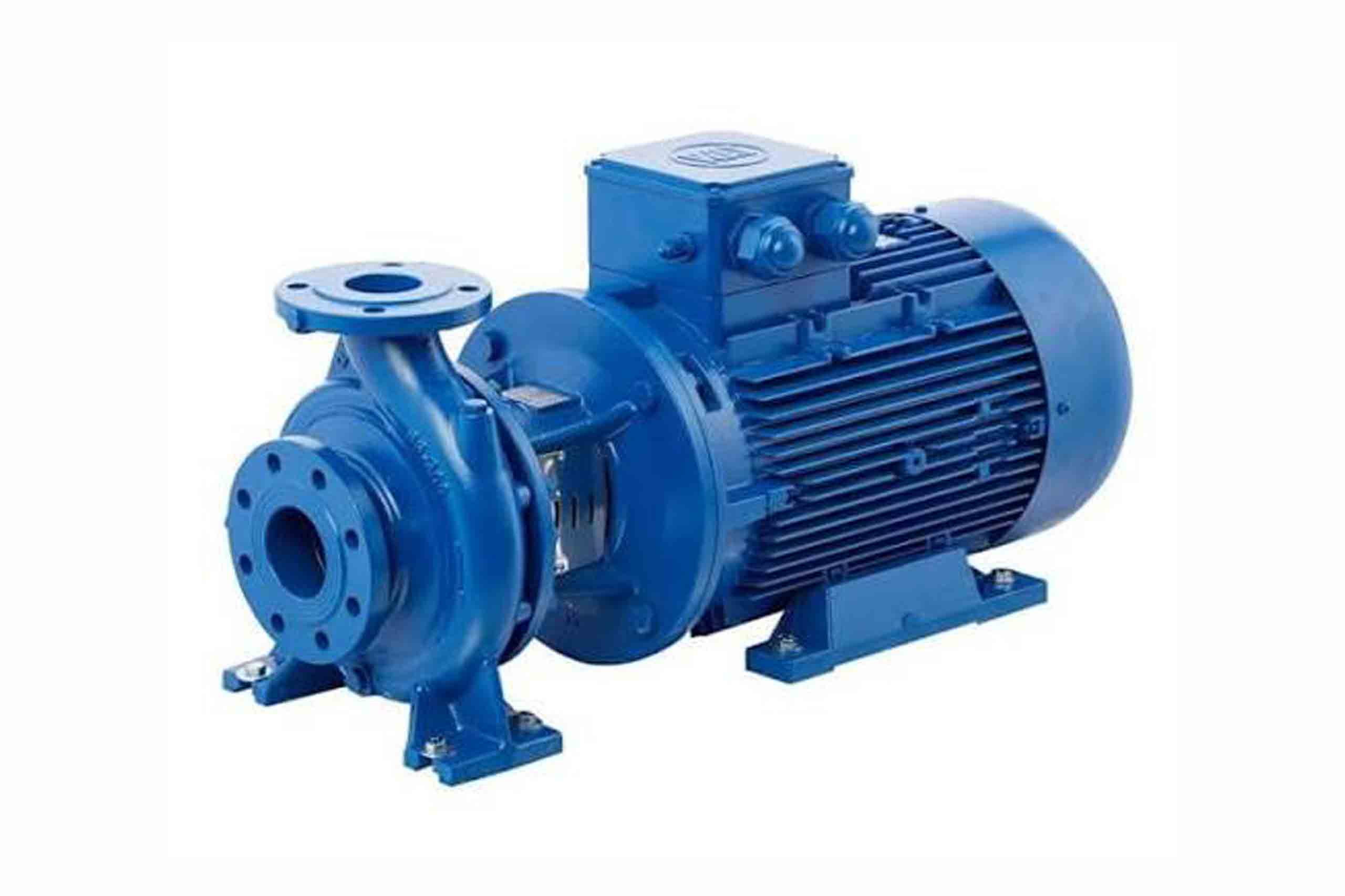

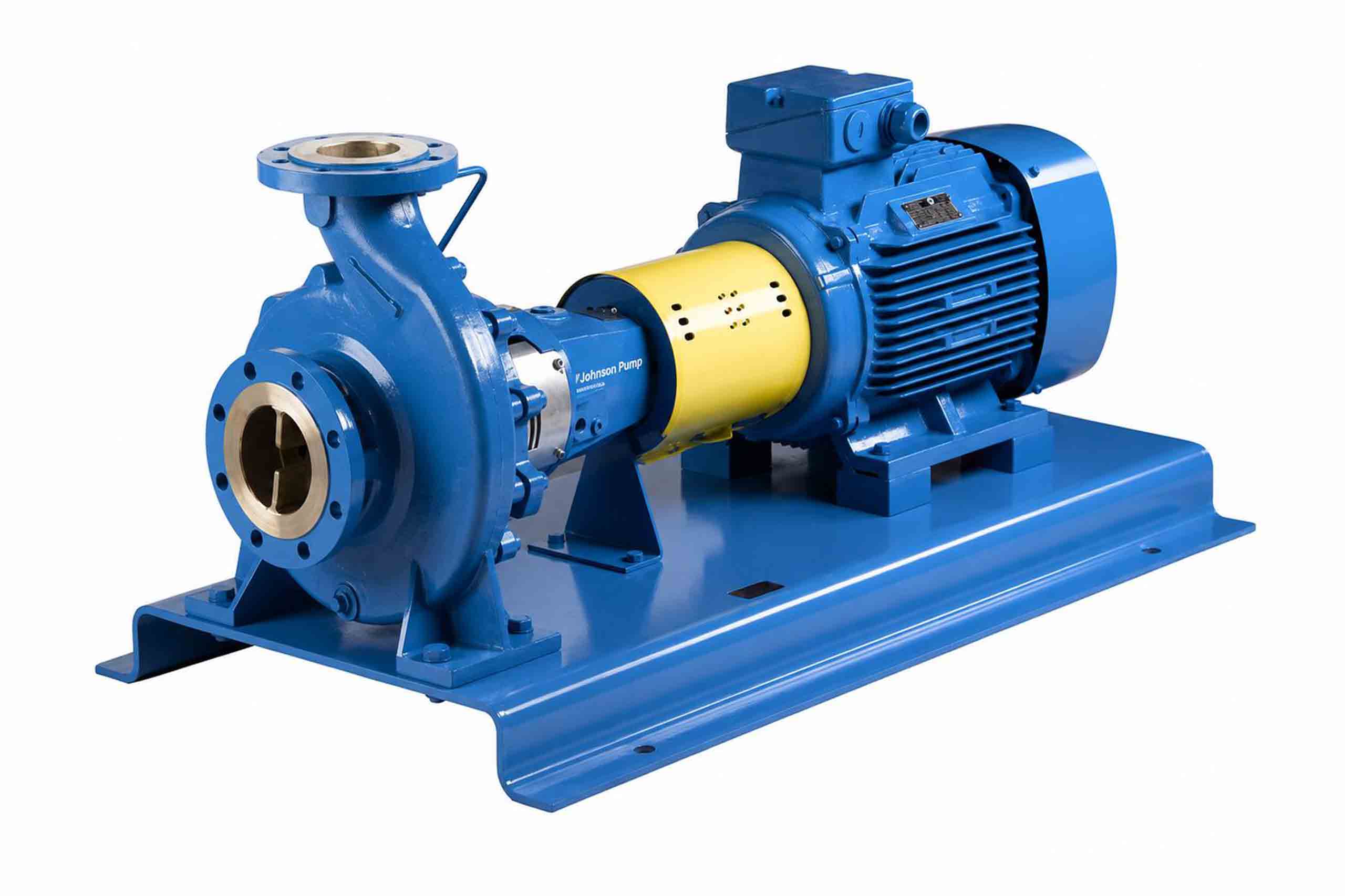

End Suction Centrifugal Pumps

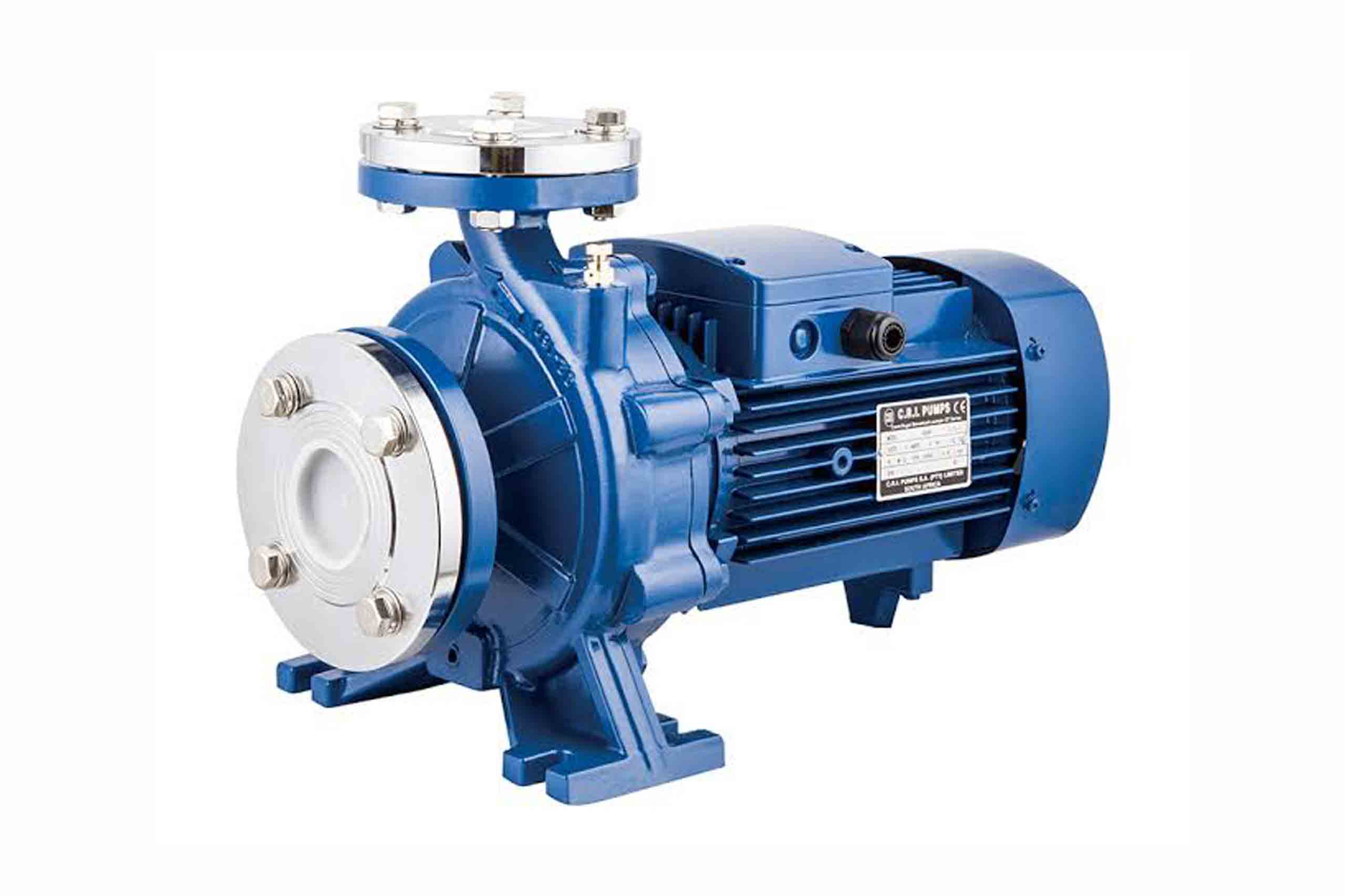

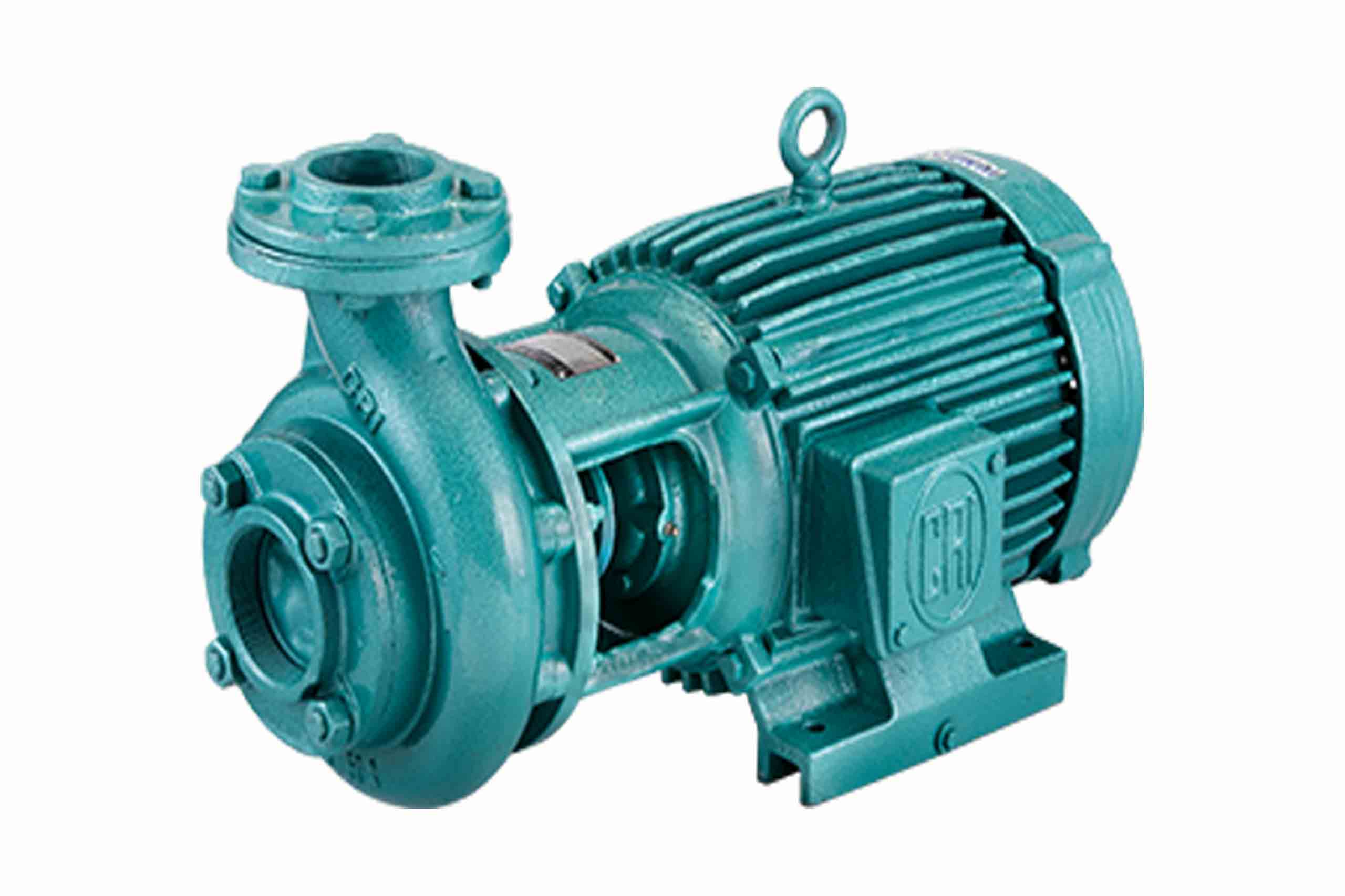

Monoblock Close Coupled Pumps
Self-Priming Open Impeller Pumps
Horizontal & Vertical Multistage Pumps
Double Impeller Centrifugal Pumps
Single Impeller Centrifugal Pumps
