Description

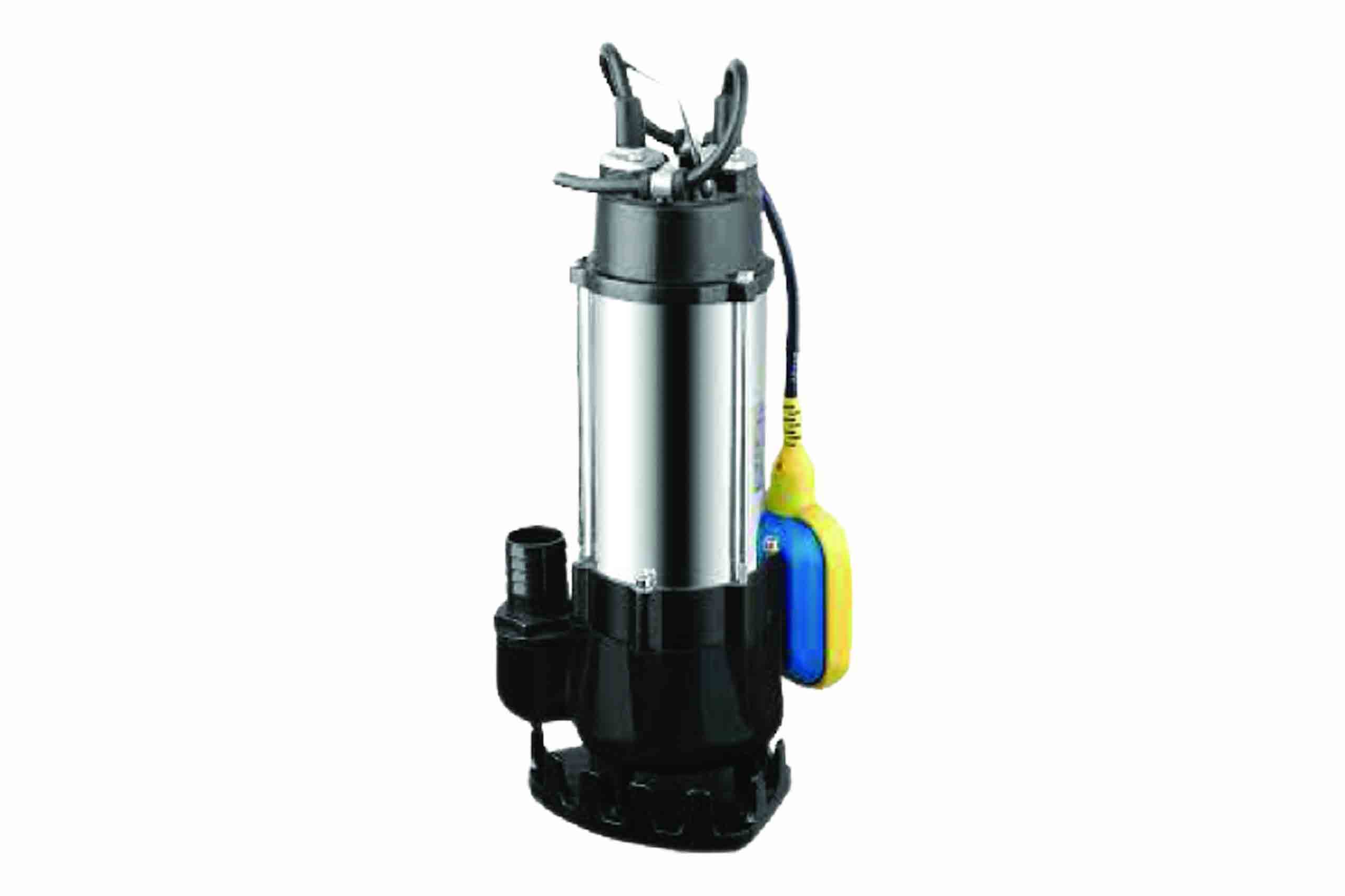

Industrial Submersible Pumps Specification
Technical Specifications
| Flow Rates & Capacity | Sewage/Drainage: Up to 7,500 L/min (450 m³/hr) Deep Borewell: Up to 10,000 L/min (600 m³/hr) |
|---|---|
| Operating Pressure & Head | Borewell Head: Up to 150 m Sewage/Drainage Head: Up to 20 m Maximum Immersion Depth: Up to 25 m (Pits) / 350 m (Wells) |
| Power Range | 0.75 kW to 75 kW (1.0 HP to 100 HP); |
| Solid & Fiber Handling (Opt.) | Free passage up to 80 mm (Vortex Sewage Impeller); Shredder cutter speed 2,900 RPM |
| Materials of Construction | Body: High-Grade Cast Iron (HT250), SS 304, Heavy SS 316L Cutter Knife: Hardened High-Chromium Alloy Steel (55-60 HRC) Impeller: Cast Iron, SS304, Glass-Filled Polycarbonate (Noryl) |
| Enclosure & Motor Protection | IP68 Submersible, Class F Insulation |
Core Industrial Submersible Categories
Submersible Drainage Pumps
Submersible Cutter Drainage Pumps
Submersible Boring / Borewell Pumps
Submersible Sewage Pumps
Heavy Slurry Submersibles Pumps
